Description
flat cage, single row
INA
HR50X73

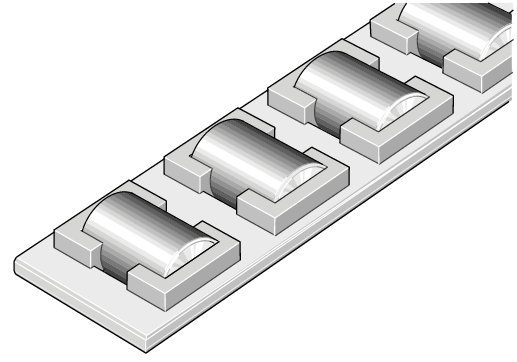

Flat cage
od EUR 23.16z VAT
netto EUR 18.83 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HR50X73—
EUR 23.16
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HR50X73#U
EAN4054371736866
Masa7.665 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
16 parametersIdentification
- Manufacturer
- INA
- Type
- Flat cage
- Part number (SKU)
- HR50X73#U
- EAN
- 4054371736866
Dimensions
- Mass
- 7.665 g

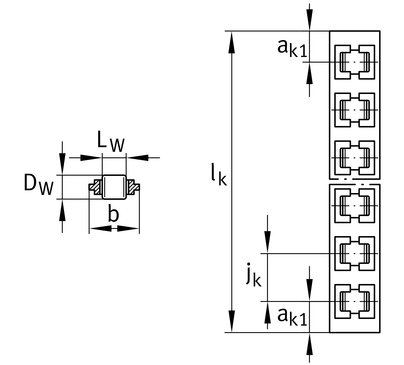

Full manufacturer specification11 parameters · expand
- Length
- 73.0 mm
- Length rolling element
- 5.0 mm
- Load capacity dyn.
- 29400.0 N
- Load capacity stat.
- 50800.0 N
- Max. length
- 4000.0 mm
- Min.
- 5.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Rolling element diameter
- 5.0 mm
- Size code
- 50
- Tolerance
- 0.2 mm
