Description

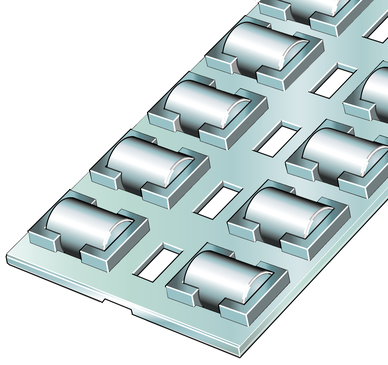

Flat cage, double row
INA
HR100X598-ZW
Flat cage
od EUR 212.97z VAT
netto EUR 173.15 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HR100X598-ZW—
EUR 212.97
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HR100X598-ZW#U
EAN4054371733049
Masa738 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- INA
- Type
- Flat cage
- Part number (SKU)
- HR100X598-ZW#U
- EAN
- 4054371733049
Dimensions
- Mass
- 738 g
Full manufacturer specification12 parameters · expand
- Length
- 598.0 mm
- Length rolling element
- 14.0 mm
- Load capacity dyn.
- 188400.0 N
- Load capacity stat.
- 348300.0 N
- Max. length
- 4000.0 mm
- Min.
- 46.0 mm
- Number of rows
- ZW
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Rolling element diameter
- 10.0 mm
- Size code
- 100
- Tolerance
- 0.2 mm
