Description

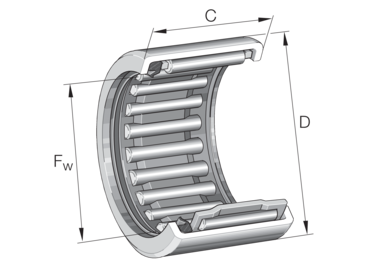

Drawn cup needle roller bearings with open ends HK..-RS, lip seal on one side, to DIN 618
INA
HK4018-RS-A-L271
Drawn cup needle roller bearing open end
od EUR 10.64z VAT
netto EUR 8.65 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HK4018-RS-A-L271—
EUR 10.64
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HK4018-RS-A-L271#N
EAN4054372504051
Masa44.925 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup needle roller bearing open end
- Part number (SKU)
- HK4018-RS-A-L271#N
- EAN
- 4054372504051

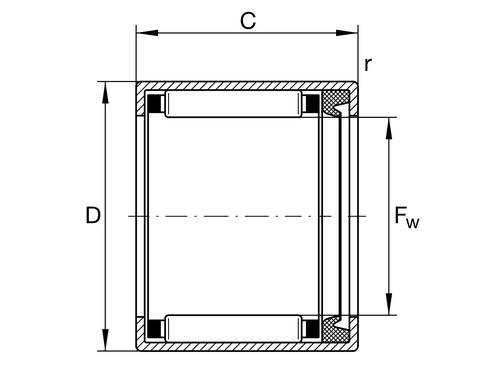

Dimensions
- Outside diameter D
- 47 mm
- Width B
- 18 mm
- Mass
- 44.925 g
Load ratings and operation
- Dynamic load rating C
- 20000 N
- Static load rating C₀
- 38500 N
- Limiting speed
- 3950 1/min
- Sealing
- RS
Full manufacturer specification15 parameters · expand
- Coating
- Without
- Fatigue load limit, radial
- 5100.0 N
- Limiting speed for grease lubrication
- 3950.0 1/min
- Lubricant
- L271
- Lubrication hole
- Without
- Minimum chamfer dimension
- 0.8 mm
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- RS
- Suitable inner rings IR
- IR35X40X20-XL
- Suitable inner rings LR
- LR35X40X20,5
- Under roller diameter
- 40.0 mm
