Description

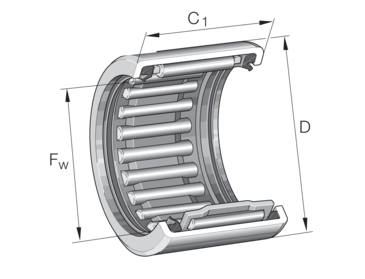

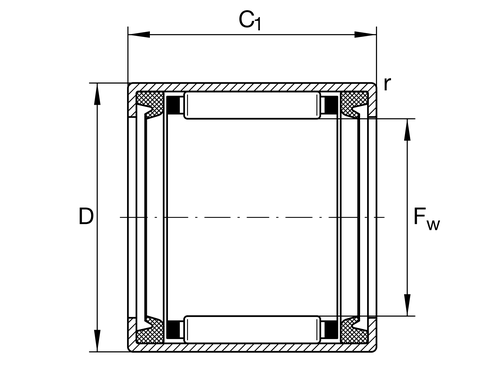

Drawn cup needle roller bearings with open ends HK..-2RS, lip seals on both sides, to DIN 618
INA
HK1416-2RS-L271
Drawn cup needle roller bearing open end
od EUR 5.74z VAT
netto EUR 4.67 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HK1416-2RS-L271—
EUR 5.74
Cheaper in larger quantities
| from 2500 pcs | EUR 4.25 | −9% |
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HK1416-2RS-L271#N
EAN4047643187145
Masa12.655 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup needle roller bearing open end
- Part number (SKU)
- HK1416-2RS-L271#N
- EAN
- 4047643187145
Dimensions
- Outside diameter D
- 20 mm
- Mass
- 12.655 g
Load ratings and operation
- Dynamic load rating C
- 7100 N
- Static load rating C₀
- 8500 N
- Limiting speed
- 10500 1/min
- Sealing
- 2RS
Full manufacturer specification14 parameters · expand
- Coating
- Without
- Fatigue load limit, radial
- 1030.0 N
- Limiting speed for grease lubrication
- 10500.0 1/min
- Lubricant
- L271
- Lubrication hole
- Without
- Minimum chamfer dimension
- 0.8 mm
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Under roller diameter
- 14.0 mm
- Width, outer ring
- 16.0 mm
