Description

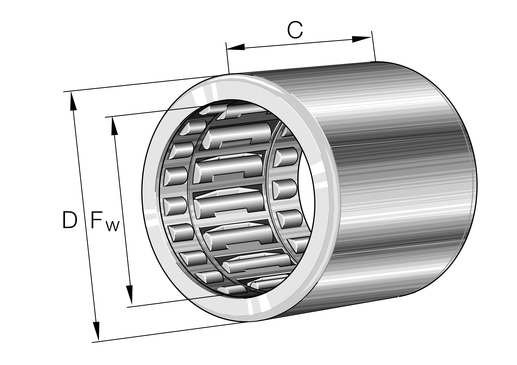

Drawn cup roller clutch HFL, with bearing
INA
HFL1022-L564
Drawn cup roller clutch
od EUR 21.32z VAT
netto EUR 17.33 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HFL1022-L564—
EUR 21.32
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HFL1022-L564#N
EAN4054368248884
Masa7.4 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup roller clutch
- Part number (SKU)
- HFL1022-L564#N
- EAN
- 4054368248884

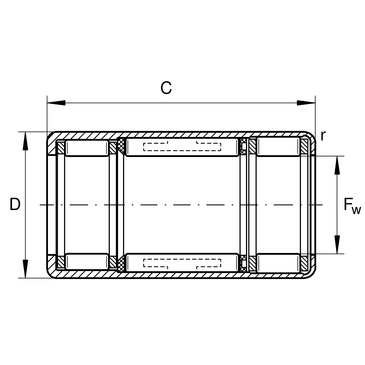

Dimensions
- Outside diameter D
- 14 mm
- Mass
- 7.4 g
Load ratings and operation
- Dynamic load rating C
- 3950 N
- Static load rating C₀
- 4500 N
Full manufacturer specification16 parameters · expand
- Coating
- Without
- Fatigue load limit, radial
- 640.0 N
- Limiting speed for rotating outer ring
- 11000.0 1/min
- Limiting speed for rotating shaft
- 14000.0 1/min
- Lubricant
- L564
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- -10.0 °C
- Permissible torque
- 5.3 Nm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shape of outer surface
- Without
- Spring design
- Standard
- Under roller diameter
- 10.0 mm
- Width, outer ring
- 22.0 mm
