Description

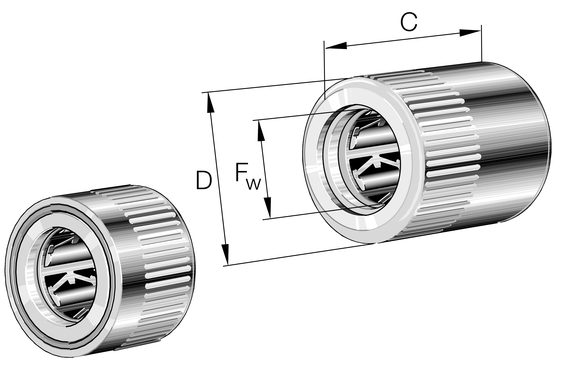

Drawn cup roller clutches HFL..-KF-R, with plain or rolling bearing arrangement, plastic springs, knurled outer ring
INA
HFL0806-KF-R-A-L564
Drawn cup roller clutch
od EUR 23.44z VAT
netto EUR 19.06 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HFL0806-KF-R-A-L564—
EUR 23.44
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HFL0806-KF-R-A-L564#N1>1
EAN4054362383246
Masa1.64 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup roller clutch
- Part number (SKU)
- HFL0806-KF-R-A-L564#N1>1
- EAN
- 4054362383246

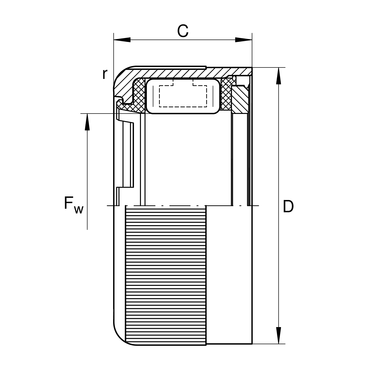

Dimensions
- Outside diameter D
- 12 mm
- Mass
- 1.64 g
Full manufacturer specification17 parameters · expand
- Coating
- Without
- Limiting load
- 4200.0 N/min
- Limiting speed for rotating outer ring
- 12000.0 1/min
- Limiting speed for rotating shaft
- 17000.0 1/min
- Lubricant
- L564
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- -10.0 °C
- Permissible radial load
- 54.0 N
- Permissible torque
- 0.7 Nm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shape of outer surface
- R
- Spring design
- KF
- Under roller diameter
- 8.0 mm
- Width, outer ring
- 6.0 mm
