Description
Drawn cup roller clutches HFL..-KF, with plain or rolling bearing arrangement, plastic springs
INA
HFL0408-KF-A-L564
Drawn cup roller clutch
od EUR 18.88z VAT
netto EUR 15.35 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HFL0408-KF-A-L564—
EUR 18.88
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HFL0408-KF-A-L564#N
EAN4047643182416
Masa1.6 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup roller clutch
- Part number (SKU)
- HFL0408-KF-A-L564#N
- EAN
- 4047643182416

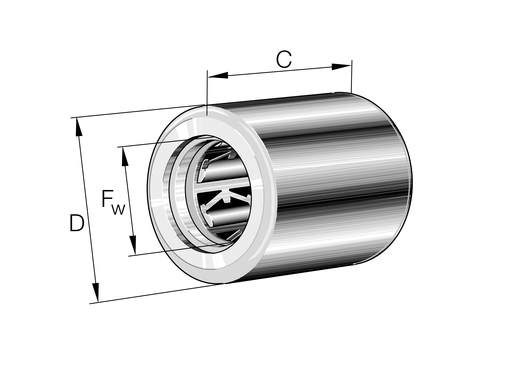

Dimensions
- Outside diameter D
- 8 mm
- Mass
- 1.6 g
Full manufacturer specification13 parameters · expand
- Limiting load
- 16000.0 N/min
- Limiting speed for rotating outer ring
- 8000.0 1/min
- Limiting speed for rotating shaft
- 34000.0 1/min
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- -10.0 °C
- Permissible radial load
- 80.0 N
- Permissible torque
- 0.34 Nm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Under roller diameter
- 4.0 mm
- Width, outer ring
- 8.0 mm
