Description

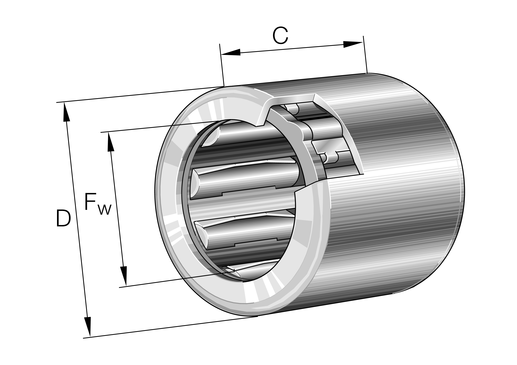

Drawn cup roller clutches HF, with steel springs
INA
HF2016-L564
Drawn cup roller clutch
od EUR 13.09z VAT
netto EUR 10.64 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HF2016-L564—
EUR 13.09
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HF2016-L564#N
EAN4054364467142
Masa16.82 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
22 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup roller clutch
- Part number (SKU)
- HF2016-L564#N
- EAN
- 4054364467142

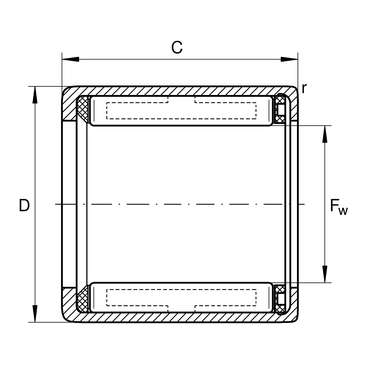

Dimensions
- Outside diameter D
- 26 mm
- Mass
- 16.82 g
Full manufacturer specification16 parameters · expand
- Coating
- Without
- Drawn cup needle roller bearings for radial bearing arrangement
- HK2010
- Limiting speed for rotating outer ring
- 6500.0 1/min
- Limiting speed for rotating shaft
- 7000.0 1/min
- Lubricant
- L564
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- -10.0 °C
- Permissible torque
- 28.5 Nm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shape of outer surface
- Without
- Spring design
- Standard
- Under roller diameter
- 20.0 mm
- Width, outer ring
- 16.0 mm
