Description

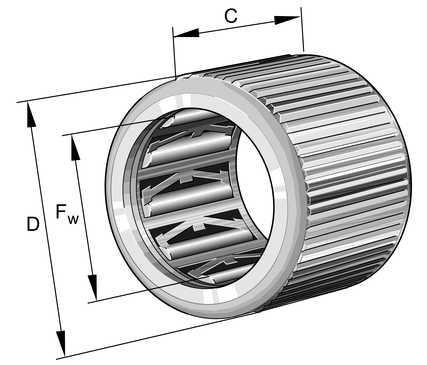

Drawn cup roller clutches HF..-KF-R, with plastic springs and knurled outer ring
INA
HF0612-KF-R-A-L564
Drawn cup roller clutch
od EUR 11.70z VAT
netto EUR 9.51 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HF0612-KF-R-A-L564—
EUR 11.70
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HF0612-KF-R-A-L564#N
EAN4054368258692
Masa2.865 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Drawn cup roller clutch
- Part number (SKU)
- HF0612-KF-R-A-L564#N
- EAN
- 4054368258692

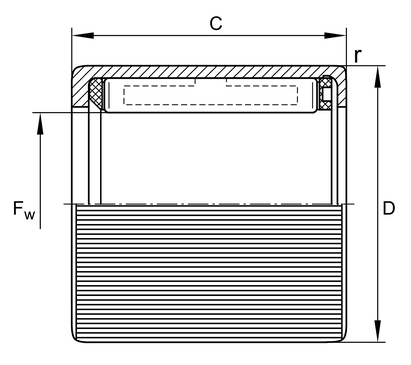

Dimensions
- Outside diameter D
- 10 mm
- Mass
- 2.865 g
Full manufacturer specification15 parameters · expand
- Coating
- Without
- Drawn cup needle roller bearings for radial bearing arrangement
- HK0608
- Limiting speed for rotating outer ring
- 13000.0 1/min
- Limiting speed for rotating shaft
- 23000.0 1/min
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- -10.0 °C
- Permissible torque
- 0.6 Nm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shape of outer surface
- R
- Spring design
- KF
- Under roller diameter
- 6.0 mm
- Width, outer ring
- 12.0 mm
