Shop under constructionThe catalogue and prices are already up to date, but we are not taking orders yet. Need a bearing now — write to us.
Authorised Schaeffler distributor — FAG and INAOrders placed before 2 p.m. ship the same day
Description

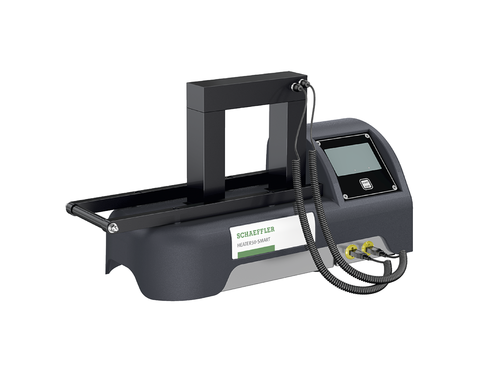

HEATER smart
Schaeffler
HEATER50-SMART-230V-UK
Induction heating device
od EUR 3,456.51z VAT
netto EUR 2,810.17 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HEATER50-SMART-230V-UK—
EUR 3,456.51
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HEATER50-SMART-230V-UK#N
EAN4064327883216
Masa24.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
43 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Induction heating device
- Part number (SKU)
- HEATER50-SMART-230V-UK#N
- EAN
- 4064327883216
Dimensions
- Mass
- 24.60 kg
Full manufacturer specification38 parameters · expand
- Automatic demagnetization, <2A/cm
- +
- Automatic power reduction
- only in temp. and speed mode
- Current rating
- 13.0 A
- Delta-T control
- +
- Device supports horizontal / lying heating of the workpiece
- +
- Device supports vertical / hanging heating of the workpiece
- +
- Display
- Touch
- Heating time
- 0 – 99 min
- Height HEATER
- 274.0 mm
- Length HEATER
- 600.0 mm
- Log function
- +
- Magnetic probe, quantity
- 2.0
- Max. heating temperature
- 240.0 °C
- Max. outer diameter workpiece
- 400.0 mm
- Max. workpiece weight
- 50.0 kg
- Max. workpiece width, horizontal heating
- 125.0 mm
- Max. workpiece width, vertical heating
- 115.0 mm
- Min. inner diameter workpiece, horizontal heating
- 65.0 mm
- Min. inner diameter workpiece, vertical heating: with included yoke
- 10.0 mm
- Operating voltage
- 230.0 V
- Overheating protection
- +
- PFAS
- nein
- Pole cross section (mm²)
- 40x50
- Pole length
- 130.0 mm
- Power consumption
- 3.0 kVA
- Power frequency
- 50 – 60 Hz
- Series
- SMART
- Space between poles
- 120.0 mm
- Swivel arm
- —
- Temperature and speed control
- +
- Temperature and time control
- +
- Temperature control
- +
- Temperature hold
- +
- Time control
- +
- Version
- 50
- Width HEATER
- 226.0 mm
- Yokes included, cross section (mm²)
- 7x7, 14x14, 40x50
- Yokes included, quantity
- 3.0
