Description

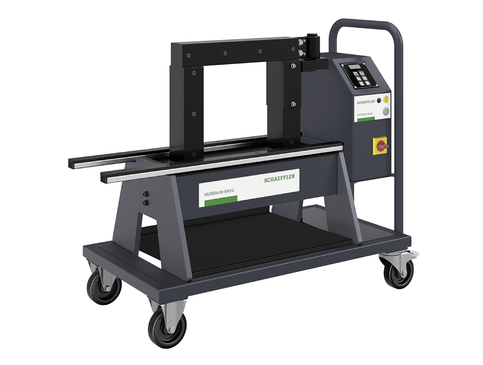

HEATER basic
Schaeffler
HEATER400-BASIC-400V
Induction heating device
od EUR 10,564.19z VAT
netto EUR 8,588.77 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HEATER400-BASIC-400V—
EUR 10,564.19
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HEATER400-BASIC-400V#N
EAN4064327301802
Masa176.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
45 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Induction heating device
- Part number (SKU)
- HEATER400-BASIC-400V#N
- EAN
- 4064327301802
Dimensions
- Mass
- 176.00 kg
Full manufacturer specification40 parameters · expand
- Automatic demagnetization, <2A/cm
- +
- Automatic power reduction
- +
- Current rating
- 30.0 A
- Delta-T control
- —
- Device mobile
- +
- Device supports horizontal / lying heating of the workpiece
- +
- Device supports vertical / hanging heating of the workpiece
- +
- Display
- Digital
- Heating time
- 0 – 99 min
- Height HEATER
- 990.0 mm
- Length HEATER
- 1214.0 mm
- Log function
- —
- Magnetic probe, quantity
- 1.0
- Max. heating temperature
- 240.0 °C

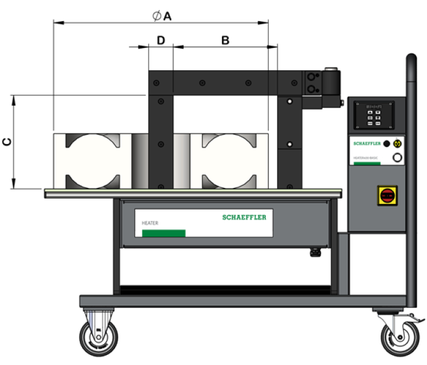

- Max. outer diameter workpiece
- 850.0 mm
- Max. workpiece weight
- 400.0 kg
- Max. workpiece width, horizontal heating
- 300.0 mm
- Max. workpiece width, vertical heating
- 315.0 mm
- Min. inner diameter workpiece, horizontal heating
- 135.0 mm
- Min. inner diameter workpiece, vertical heating: with included yoke
- 115.0 mm
- Min. inner diameter workpiece, vertical heating: with optional yoke
- 30.0 mm
- Operating voltage
- 400.0 V
- Overheating protection
- +
- PFAS
- nein
- Pole cross section (mm²)
- 80x100
- Pole length
- 305.0 mm
- Power consumption
- 12.0 kVA
- Power frequency
- 50 – 60 Hz
- Series
- BASIC
- Space between poles
- 320.0 mm
- Swivel arm
- +
- Temperature and speed control
- —
- Temperature and time control
- —
- Temperature control
- +
- Temperature hold
- +
- Time control
- +
- Version
- 400
- Width HEATER
- 560.0 mm
- Yokes included, cross section (mm²)
- 80x80
- Yokes included, quantity
- 1.0
