Description

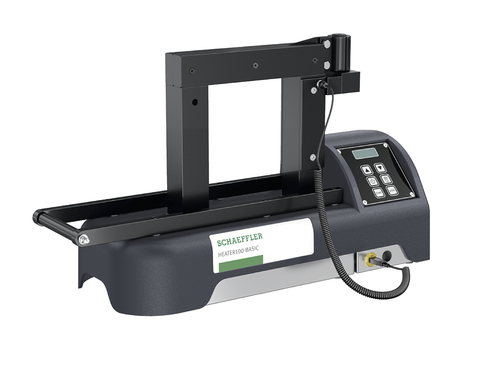

HEATER basic
Schaeffler
HEATER100-BASIC-230V
Induction heating device
od EUR 3,328.44z VAT
netto EUR 2,706.05 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HEATER100-BASIC-230V—
EUR 3,328.44
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HEATER100-BASIC-230V#N
EAN4064327163516
Masa36.30 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Induction heating device
- Part number (SKU)
- HEATER100-BASIC-230V#N
- EAN
- 4064327163516
Dimensions
- Mass
- 36.30 kg
Full manufacturer specification39 parameters · expand
- Automatic demagnetization, <2A/cm
- +
- Automatic power reduction
- +
- Current rating
- 16.0 A
- Delta-T control
- —
- Device supports horizontal / lying heating of the workpiece
- +
- Device supports vertical / hanging heating of the workpiece
- +
- Display
- Digital
- Heating time
- 0 – 99 min
- Height HEATER
- 392.0 mm
- Length HEATER
- 702.0 mm
- Log function
- —
- Magnetic probe, quantity
- 1.0
- Max. heating temperature
- 240.0 °C
- Max. outer diameter workpiece
- 500.0 mm
- Max. workpiece weight
- 100.0 kg
- Max. workpiece width, horizontal heating
- 180.0 mm
- Max. workpiece width, vertical heating
- 175.0 mm
- Min. inner diameter workpiece, horizontal heating
- 72.0 mm
- Min. inner diameter workpiece, vertical heating: with included yoke
- 30.0 mm
- Min. inner diameter workpiece, vertical heating: with optional yoke
- 15.0 mm
- Operating voltage
- 230.0 V
- Overheating protection
- +
- PFAS
- nein
- Pole cross section (mm²)
- 50x50
- Pole length
- 185.0 mm
- Power consumption
- 3.7 kVA
- Power frequency
- 50 – 60 Hz
- Series
- BASIC
- Space between poles
- 180.0 mm
- Swivel arm
- +
- Temperature and speed control
- —
- Temperature and time control
- —
- Temperature control
- +
- Temperature hold
- +
- Time control
- +
- Version
- 100
- Width HEATER
- 256.0 mm
- Yokes included, cross section (mm²)
- 20x20, 50x50
- Yokes included, quantity
- 2.0
