Description

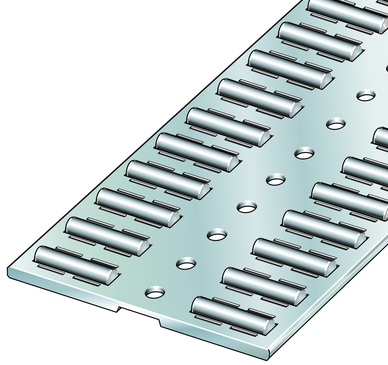

Flat cage, double row
INA
H34X2004,5-ZW
Flat cage
od EUR 478.21z VAT
netto EUR 388.79 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
H34X2004,5-ZW—
EUR 478.21
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)H34X2004,5-ZW#U
EAN4054371734886
Masa945 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
18 parametersIdentification
- Manufacturer
- INA
- Type
- Flat cage
- Part number (SKU)
- H34X2004,5-ZW#U
- EAN
- 4054371734886
Dimensions
- Mass
- 945 g
Full manufacturer specification13 parameters · expand
- Associated rail
- J7040, S7040
- Length
- 2004.5 mm
- Length rolling element
- 9.8 mm
- Load capacity dyn.
- 57000.0 N
- Load capacity stat.
- 188800.0 N
- Max. length
- 4000.0 mm
- Min.
- 28.5 mm
- Number of rows
- ZW
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Rolling element diameter
- 2.5 mm
- Size code
- 34
- Tolerance
- 0.2 mm
