Description
Shaft block
INA
GWN12-B

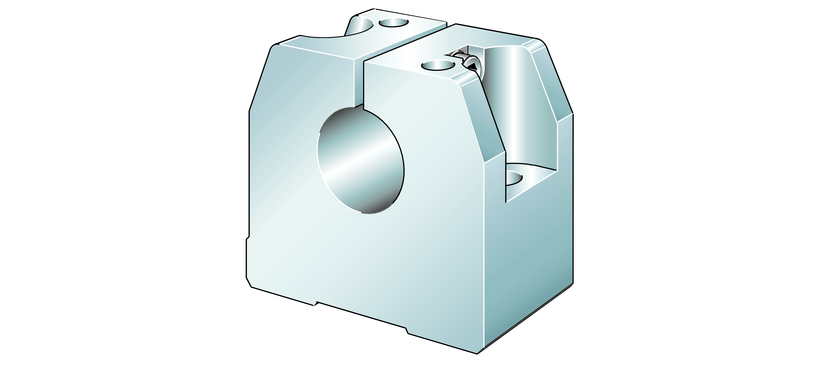

Shaft block
od EUR 63.43z VAT
netto EUR 51.57 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GWN12-B—
EUR 63.43
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GWN12-B#N1
EAN4054362377078
Masa60 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Shaft block
- Part number (SKU)
- GWN12-B#N1
- EAN
- 4054362377078
Dimensions
- Width B
- 43 mm
- Mass
- 60 g
Full manufacturer specification15 parameters · expand
- Diameter
- 12.0 mm
- Height
- 35.0 mm
- Length
- 20.0 mm
- Lower tolerance
- 0.01 mm
- Mounting Dimension
- 30.0 mm
- Mounting thread below
- M6
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Size code
- 12
- Size thread fixing screws above
- M5
- Tolerance
- H8
- Upper tolerance
- 0.15 mm
- Version
- B
- Width across Flat
- 3.0 mm
