Description

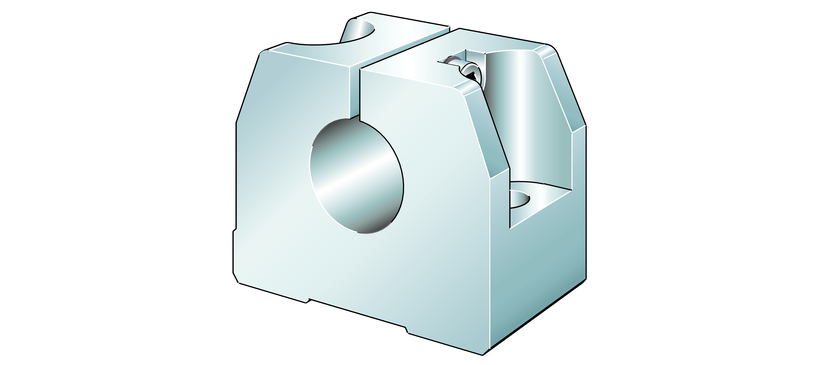

Shaft block
INA
GWH08-B
Shaft block
od EUR 44.00z VAT
netto EUR 35.77 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GWH08-B—
EUR 44.00
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GWH08-B#N1
EAN4054362377016
Masa30 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Shaft block
- Part number (SKU)
- GWH08-B#N1
- EAN
- 4054362377016
Dimensions
- Mass
- 30 g

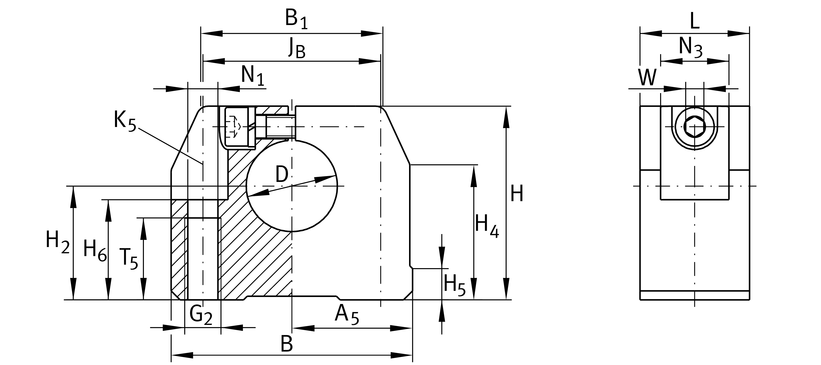

Full manufacturer specification16 parameters · expand
- Diameter
- 8.0 mm
- Heigth
- 27.0 mm
- Length
- 16.0 mm
- Lower tolerance
- 0.1 mm
- Mounting Dimension
- 22.0 mm
- Mounting thread below
- M5
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Sie thread fixing screws above
- M4
- Size code
- 08
- Suffix
- B
- Tolerance
- H8
- Upper tolerance
- 0.15 mm
- Width across Flat
- 2.5 mm
- Width across flats
- 32.0 mm
