Description
Radial insert ball bearing GRAE..-XL-NPP-B-OSE
INA
GRAE40-XL-NPP-B-OSE
Radial insert ball bearing
⌀40 × 80 × 30.2 mm
od EUR 34.06z VAT
netto EUR 27.69 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GRAE40-XL-NPP-B-OSE—
EUR 34.06
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GRAE40-XL-NPP-B-OSE#N1
EAN4012802788648
Wymiary⌀40 × 80 × 30.2 mm
Masa450 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- GRAE40-XL-NPP-B-OSE#N1
- EAN
- 4012802788648

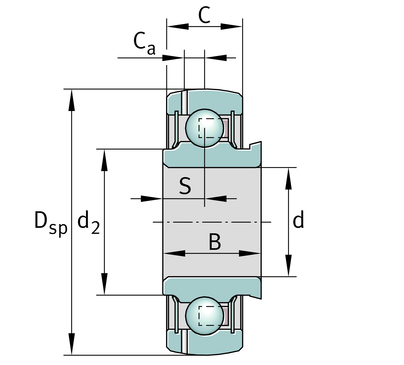

Dimensions
- Bore d
- 40 mm
- Outside diameter D
- 80 mm
- Width B
- 30.2 mm
- Mass
- 450 g
Load ratings and operation
- Dynamic load rating C
- 34500 N
- Static load rating C₀
- 19800 N
- Sealing
- NPP
Full manufacturer specification13 parameters · expand
- Calculation factor
- 13.6
- Distance raceway
- 11.0 mm
- Distance to lubrication hole
- 6.4 mm
- Fatigue load limit, radial
- 1030.0 N
- Marketing category
- XL
- PFAS
- nein
- REACH
- REACH conform
- Rib diameter sealing inner ring
- 49.4 mm
- RoHS
- RoHS compliant
- Sealing
- NPP
- Shape of outer surface
- B
- Width, outer ring
- 21.0 mm
- Without locking device
- OSE
