Description

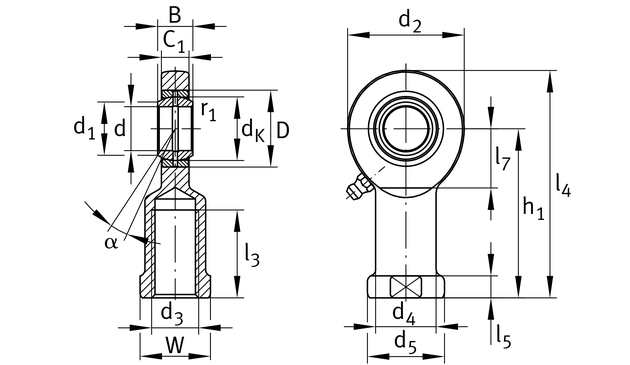

Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, open design
INA
GIR30-DO
Rod end
⌀30 × 47 mm
od EUR 82.10z VAT
netto EUR 66.75 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GIR30-DO—
EUR 82.10
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GIR30-DO#N1
EAN4012802526899
Wymiary⌀30 × 47 mm
Masa978 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
47 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GIR30-DO#N1
- EAN
- 4012802526899
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 47 mm
- Mass
- 978 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 81000 N
- Static load rating C₀
- 119000 N
- Sealing
- Without
Full manufacturer specification36 parameters · expand
- Ball diameter
- 40.7 mm
- Bore diameter bearing, lower tolerance
- -0.01 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 37.0 mm
- Edge Spacing
- 0.6 mm
- Length rod end shank
- 15.0 mm
- Lubrication nipple
- DIN71412-AS6 (tapered grease nipple)
- Maintenance
- Maintenance required
- Mounting
- Internal thread
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -60.0 °C
- Outer eye diameter
- 73.0 mm
- Outer flange diameter inner ring
- 34.2 mm
- PFAS
- nein
- Radial Clearance
- 0,037 - 0,1
- Radial clearance, maximum
- 0.1 mm
- Radial clearance, minimum
- 0.037 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Shank diameter
- 40.0 mm
- Shank diameter, large
- 50.0 mm
- Shank Length Internal thread head
- 110.0 mm
- Slotted
- No
- Thread length Internal thread
- 56.0 mm
- Thread Pitch
- Right-hand thread
- Thread size
- M30x2
- Tilt angle
- 6.0 °
- Total length internal thread head
- 146.5 mm
- Width Across Flat
- 41.0 mm
- Width inner ring
- 22.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 19.0 mm
