Description
Rod end with internal thread, maintenance-free, sliding layer: ELGOGLIDE, DIN ISO 12240-4, dimension series E, type F, inner ring curved surface with hard chromium coating, sealed, left hand thread
INA
GIL60-UK-2RS-A
Rod end
⌀60 × 90 mm
od EUR 677.84z VAT
netto EUR 551.09 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GIL60-UK-2RS-A—
EUR 677.84
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GIL60-UK-2RS-A#N1
EAN4012802529067
Wymiary⌀60 × 90 mm
Masa5.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
45 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GIL60-UK-2RS-A#N1
- EAN
- 4012802529067

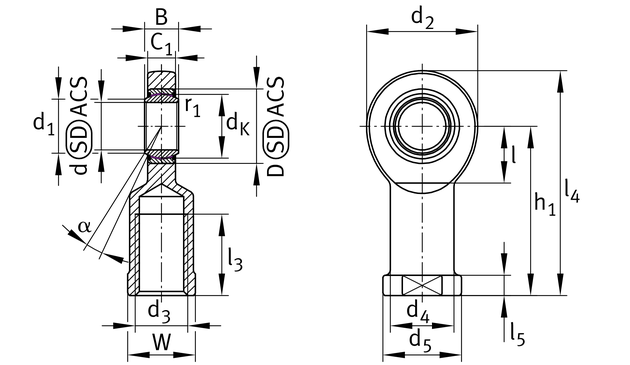

Dimensions
- Bore d
- 60 mm
- Outside diameter D
- 90 mm
- Mass
- 5.60 kg
Load ratings and operation
- Dynamic load rating C
- 691000 N
- Static load rating C₀
- 485000 N
- Sealing
- 2RS
Full manufacturer specification35 parameters · expand
- Ball diameter
- 80.0 mm
- Bore diameter bearing, lower tolerance
- -0.015 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 75.0 mm
- Edge Spacing
- 1.0 mm
- Length rod end shank
- 20.0 mm
- Lubrication nipple
- Cannot be relubricated
- Maintenance
- Maintenance free
- Mounting
- Internal thread
- Operating temperature max.
- 130.0 °C
- Operating temperature min.
- -30.0 °C
- Outer eye diameter
- 135.0 mm
- Outer flange diameter inner ring
- 66.8 mm
- PFAS
- ja
- Radial Clearance
- 0 - 0,06
- Radial clearance, maximum
- 0.06 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Shank diameter
- 70.0 mm
- Shank diameter, large
- 88.0 mm
- Shank Length Internal thread head
- 175.0 mm
- Slotted
- No
- Thread length Internal thread
- 70.0 mm
- Thread Pitch
- Left-hand thread
- Thread size
- M52x3
- Tilt angle
- 6.0 °
- Total length internal thread head
- 242.5 mm
- Width Across Flat
- 75.0 mm
- Width inner ring
- 44.0 mm
- Width inner ring, lower tolerance
- -0.15 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 38.0 mm
