Description
Corrosion-resistant rod end, with internal thread, right hand thread : maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open designfine pith thread connector for standard pneumatic cylinders to DIN ISO 15552
INA
GIKPSR12-PS
Rod end
⌀12 × 26 mm
od EUR 90.31z VAT
netto EUR 73.42 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GIKPSR12-PS—
EUR 90.31
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GIKPSR12-PS#N1
EAN4012802648133
Wymiary⌀12 × 26 mm
Masa115 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GIKPSR12-PS#N1
- EAN
- 4012802648133

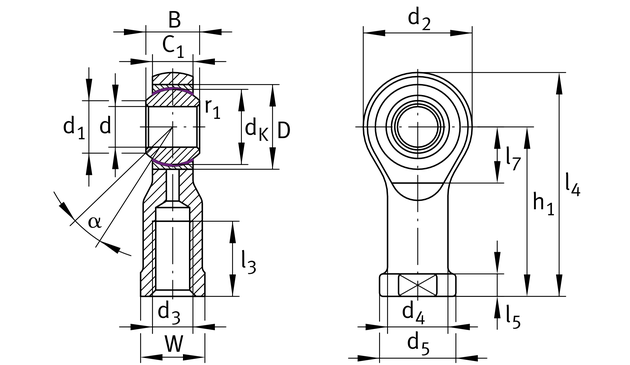

Dimensions
- Bore d
- 12 mm
- Outside diameter D
- 26 mm
- Mass
- 115 g
Load ratings and operation
- Dynamic load rating C
- 24000 N
- Static load rating C₀
- 9100 N
- Sealing
- Without
Full manufacturer specification36 parameters · expand
- Ball diameter
- 22.2 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.018 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 16.0 mm
- Edge Spacing
- 0.3 mm
- Length rod end shank
- 6.5 mm
- Lubrication nipple
- Cannot be relubricated
- Maintenance
- Maintenance free
- Mounting
- Internal thread
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -10.0 °C
- Outer eye diameter
- 33.0 mm
- Outer flange diameter inner ring
- 15.4 mm
- PFAS
- nein
- Radial Clearance
- 0,005 - 0,045
- Radial clearance, maximum
- 0.045 mm
- Radial clearance, minimum
- 0.005 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Shank diameter
- 17.5 mm
- Shank diameter, large
- 22.0 mm
- Shank Length Internal thread head
- 50.0 mm
- Slotted
- No
- Thread length Internal thread
- 18.0 mm
- Thread Pitch
- Right-hand thread
- Thread size
- M12x1,25
- Tilt angle
- 13.0 °
- Total length internal thread head
- 66.5 mm
- Width Across Flat
- 19.0 mm
- Width inner ring
- 16.0 mm
- Width inner ring, lower tolerance
- 0.0 mm
- Width inner ring, upper tolerance
- 0.012 mm
- Width of the rod end
- 12.0 mm
