Description
Rod end with internal thread, left hand thread, requiring maintenance, DIN ISO 12240-4. dimension series K, type F, open design
INA
GIKL5-PB-A
Rod end
⌀5 × 13 mm
od EUR 38.73z VAT
netto EUR 31.49 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GIKL5-PB-A—
EUR 38.73
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GIKL5-PB-A#N1
EAN4012802523515
Wymiary⌀5 × 13 mm
Masa20 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GIKL5-PB-A#N1
- EAN
- 4012802523515

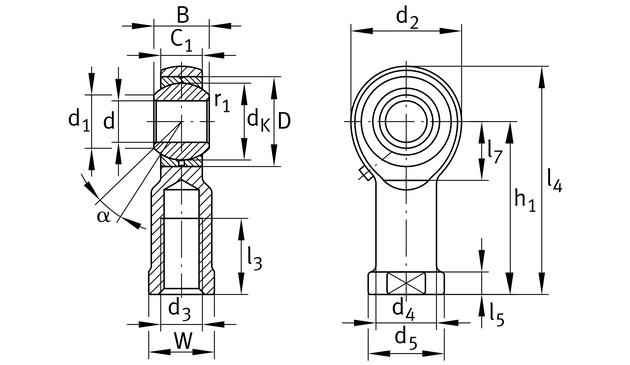

Dimensions
- Bore d
- 5 mm
- Outside diameter D
- 13 mm
- Mass
- 20 g
Load ratings and operation
- Dynamic load rating C
- 3330 N
- Static load rating C₀
- 9180 N
- Sealing
- Without
Full manufacturer specification36 parameters · expand
- Ball diameter
- 11.112 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.012 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 10.0 mm
- Edge Spacing
- 0.3 mm
- Length rod end shank
- 4.0 mm
- Lubrication nipple
- DIN71412-AS6 (tapered grease nipple)
- Maintenance
- Maintenance required
- Mounting
- Internal thread
- Operating temperature max.
- 250.0 °C
- Operating temperature min.
- -60.0 °C
- Outer eye diameter
- 18.0 mm
- Outer flange diameter inner ring
- 7.7 mm
- PFAS
- nein
- Radial Clearance
- 0 - 0,035
- Radial clearance, maximum
- 0.035 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Shank diameter
- 8.5 mm
- Shank diameter, large
- 11.0 mm
- Shank Length Internal thread head
- 27.0 mm
- Slotted
- No
- Thread length Internal thread
- 10.0 mm
- Thread Pitch
- Left-hand thread
- Thread size
- M5
- Tilt angle
- 13.0 °
- Total length internal thread head
- 36.0 mm
- Width Across Flat
- 9.0 mm
- Width inner ring
- 8.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 6.0 mm
