Description

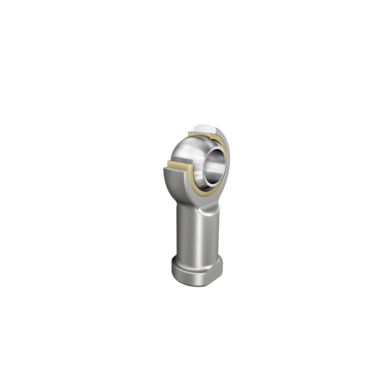

Rod end with internal thread, left hand thread, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-4, dimension series K, type F, open design
INA
GIKL16-PW
Rod end
⌀16 × 32 mm
od EUR 54.23z VAT
netto EUR 44.09 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GIKL16-PW—
EUR 54.23
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GIKL16-PW#N1
EAN4012802525878
Wymiary⌀16 × 32 mm
Masa240 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GIKL16-PW#N1
- EAN
- 4012802525878

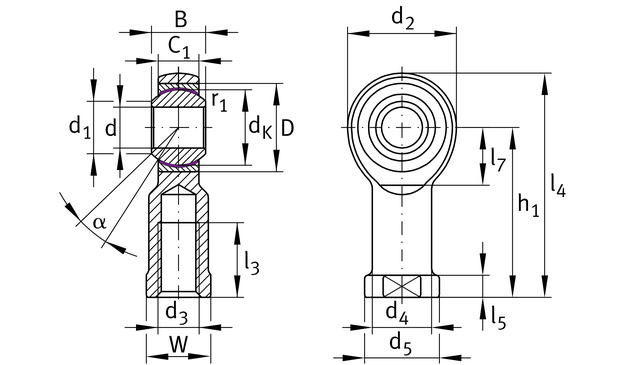

Dimensions
- Bore d
- 16 mm
- Outside diameter D
- 32 mm
- Mass
- 240 g
Load ratings and operation
- Dynamic load rating C
- 38600 N
- Static load rating C₀
- 45300 N
- Sealing
- Without
Full manufacturer specification36 parameters · expand
- Ball diameter
- 28.575 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.018 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 23.0 mm
- Edge Spacing
- 0.3 mm
- Length rod end shank
- 8.0 mm
- Lubrication nipple
- Cannot be relubricated
- Maintenance
- Maintenance free
- Mounting
- Internal thread
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -50.0 °C
- Outer eye diameter
- 42.0 mm
- Outer flange diameter inner ring
- 19.3 mm
- PFAS
- ja
- Radial Clearance
- 0 - 0,035
- Radial clearance, maximum
- 0.035 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing
- Without
- Shank diameter
- 22.0 mm
- Shank diameter, large
- 28.0 mm
- Shank Length Internal thread head
- 64.0 mm
- Slotted
- No
- Thread length Internal thread
- 28.0 mm
- Thread Pitch
- Left-hand thread
- Thread size
- M16
- Tilt angle
- 15.0 °
- Total length internal thread head
- 85.0 mm
- Width Across Flat
- 22.0 mm
- Width inner ring
- 21.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 15.0 mm
