Description

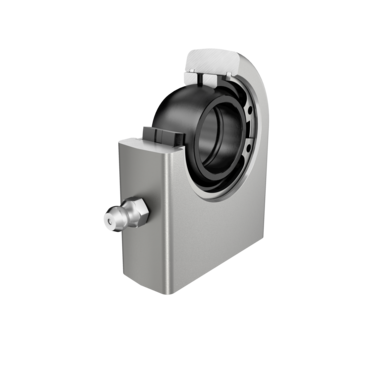

Hydraulic rod end, with rectangular welding face, requiring maintenance, sliding contact surface: steel/steel, open design
INA
GF45-DO-C
Rod end
⌀45 × 68 mm
od EUR 116.63z VAT
netto EUR 94.82 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GF45-DO-C—
EUR 116.63
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GF45-DO-C#N1
EAN4064328483651
Wymiary⌀45 × 68 mm
Masa3.33 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
38 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GF45-DO-C#N1
- EAN
- 4064328483651

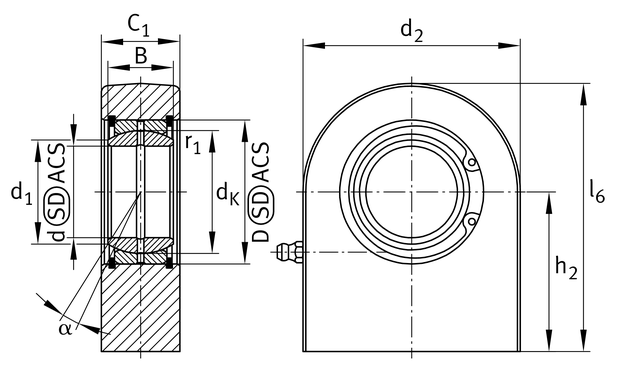

Dimensions
- Bore d
- 45 mm
- Outside diameter D
- 68 mm
- Mass
- 3.33 kg
Load ratings and operation
- Dynamic load rating C
- 166000 N
- Static load rating C₀
- 386000 N
- Sealing
- Without
Full manufacturer specification28 parameters · expand
- Ball diameter
- 60.0 mm
- Bore diameter bearing, lower tolerance
- -0.012 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Clampable
- Not clampable
- Edge Spacing
- 0.6 mm
- Lubrication nipple
- DIN71412-AM6 (tapered grease nipple)
- Maintenance
- Maintenance required
- Mounting
- Weldable, rectangular
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -60.0 °C
- Outer eye diameter
- 110.0 mm
- Outer flange diameter inner ring
- 50.8 mm
- PFAS
- nein
- Radial Clearance
- 0,043-0,12
- Radial clearance, maximum
- 0.12 mm
- Radial clearance, minimum
- 0.043 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Shank Length Welding Head
- 77.0 mm
- Slotted
- No
- Tilt angle
- 7.0 °
- Total length welding head
- 132.0 mm
- Width inner ring
- 32.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 40.0 mm
- Width of the rod end, max.
- 40.9 mm
