Description
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design
INA
GE8-PB
Spherical plain bearing
⌀8 × 19 mm
od EUR 20.66z VAT
netto EUR 16.80 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE8-PB—
EUR 20.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE8-PB#N1
EAN4012802533125
Wymiary⌀8 × 19 mm
Masa17.85 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
40 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE8-PB#N1
- EAN
- 4012802533125

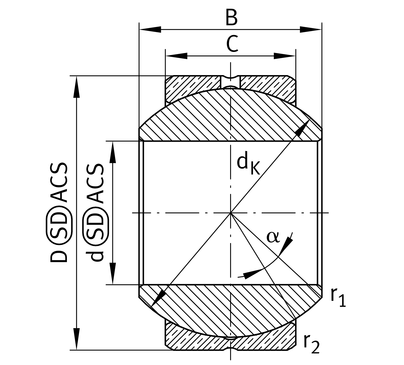

Dimensions
- Bore d
- 8 mm
- Outside diameter D
- 19 mm
- Mass
- 17.85 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 7140 N
- Static load rating C₀
- 17900 N
- Sealing
- Without
Full manufacturer specification29 parameters · expand
- Ball diameter
- 15.875 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.015 mm
- Coating
- Without
- Connection measure Inner ring
- 10.3 mm
- Edge Spacing
- 0.3 mm

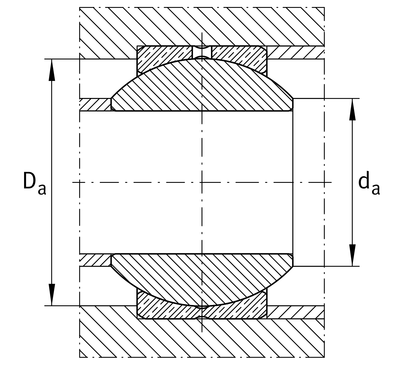

- Housing Connection Diameter
- 14.0 mm
- Maintenance
- Maintenance required
- Material
- Steel
- Operating temperature max.
- 250.0 °C
- Operating temperature min.
- -60.0 °C
- Outside diameter, lower tolerance
- -0.009 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- nein
- Radial Clearance
- 0,006 - 0,035
- Radial clearance, maximum
- 0.035 mm
- Radial clearance, minimum
- 0.006 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Tilt angle
- 14.0 °
- Width inner ring
- 12.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 9.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
