Description

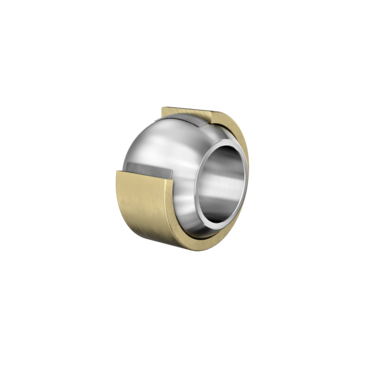

Radial spherical plain bearing, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-1, dimension series K, open design
INA
GE5-PW
Spherical plain bearing
⌀5 × 13 mm
od EUR 15.99z VAT
netto EUR 13.00 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE5-PW—
EUR 15.99
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE5-PW#N1
EAN4012802547368
Wymiary⌀5 × 13 mm
Masa5.2 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE5-PW#N1
- EAN
- 4012802547368

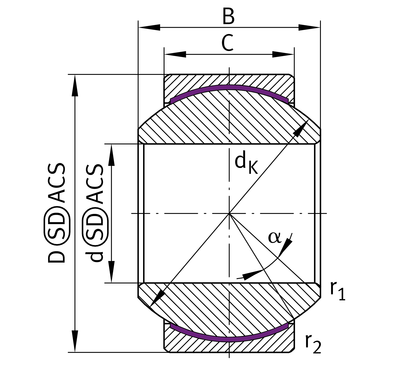

Dimensions
- Bore d
- 5 mm
- Outside diameter D
- 13 mm
- Mass
- 5.2 g
Load ratings and operation
- Dynamic load rating C
- 6000 N
- Static load rating C₀
- 15000 N
- Sealing
- Without
Full manufacturer specification29 parameters · expand
- Ball diameter
- 11.112 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.012 mm
- Bore lining
- Without
- Coating
- Without

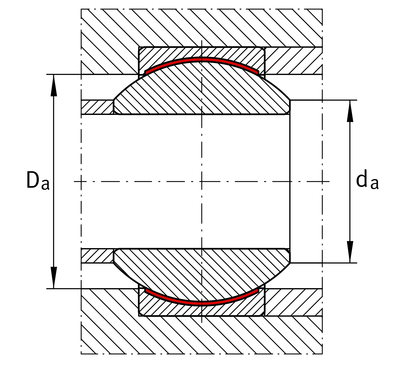

- Connection measurement, inner ring
- 7.7 mm
- Edge Spacing
- 0.3 mm
- Housing Connection Diameter
- 9.8 mm
- Maintenance
- Maintenance free
- Material
- Steel
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -50.0 °C
- Outside diameter, lower tolerance
- -0.008 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- ja
- Radial Clearance
- 0,006 - 0,035
- Radial clearance, maximum
- 0.035 mm
- Radial clearance, minimum
- 0.006 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing
- Without
- Tilt angle
- 13.0 °
- Width inner ring
- 8.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 6.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
