Description

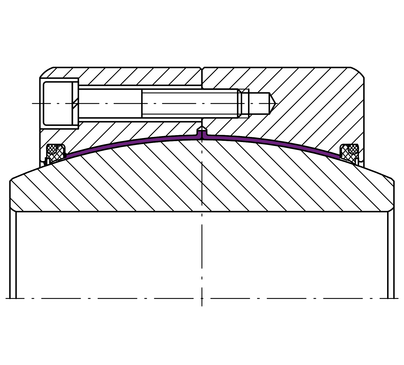

Large radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series C, sealed
INA

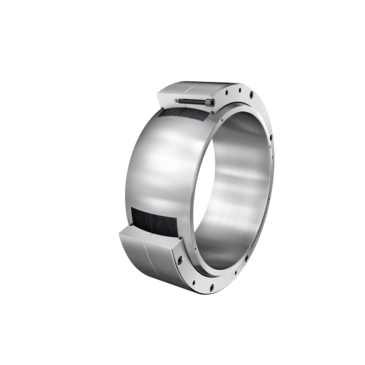

GE360-DW-2RS2-B-XL
Spherical plain bearing
⌀360 × 480 mm
od EUR 19,490.68z VAT
netto EUR 15,846.08 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE360-DW-2RS2-B-XL—
EUR 19,490.68
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE360-DW-2RS2-B-XL#N1
EAN4012802539233
Wymiary⌀360 × 480 mm
Masa84.62 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
40 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE360-DW-2RS2-B-XL#N1
- EAN
- 4012802539233

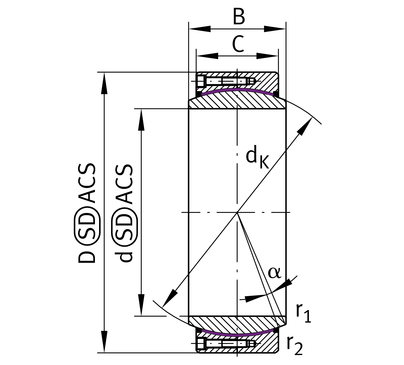

Dimensions
- Bore d
- 360 mm
- Outside diameter D
- 480 mm
- Mass
- 84.62 kg
Load ratings and operation
- Dynamic load rating C
- 14300000 N
- Static load rating C₀
- 23800000 N
- Sealing
- 2RS2
Full manufacturer specification30 parameters · expand
- Ball diameter
- 420.0 mm
- Bore diameter bearing, lower tolerance
- -0.04 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore lining
- Without
- Coating
- Without

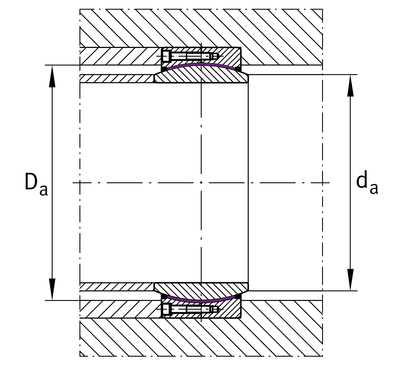

- Connection measurement, inner ring
- 388.3 mm
- Edge Spacing
- 3.0 mm
- Fabric
- ELGOGLIDE
- Housing Connection Diameter
- 403.0 mm
- Maintenance
- Maintenance free
- Marketing category
- XL
- Material
- Steel
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -40.0 °C
- Outside diameter, lower tolerance
- -0.045 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- ja
- Radial Clearance
- 0 - 0,135
- Radial clearance, maximum
- 0.135 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- 2RS2
- Tilt angle
- 3.6 °
- Width inner ring
- 160.0 mm
- Width inner ring, lower tolerance
- -0.4 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 135.0 mm
- Width outer ring, lower tolerance
- -0.9 mm
- Width outer ring, upper tolerance
- 0.0 mm
