Description

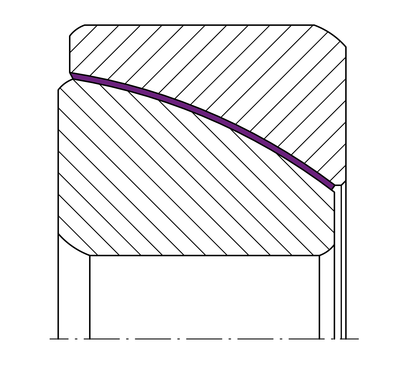

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
INA
GE28-SW-A
Spherical plain bearing
⌀28 × 52 mm
od EUR 148.34z VAT
netto EUR 120.60 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE28-SW-A—
EUR 148.34
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE28-SW-A#N1
EAN4012802532470
Wymiary⌀28 × 52 mm
Masa172 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
37 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE28-SW-A#N1
- EAN
- 4012802532470

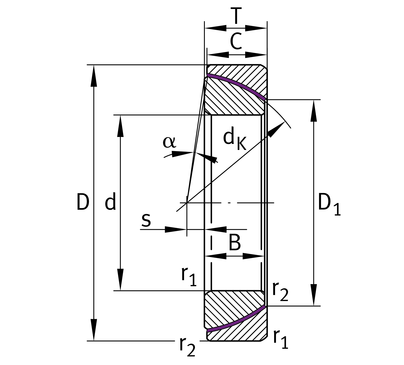

Dimensions
- Bore d
- 28 mm
- Outside diameter D
- 52 mm
- Mass
- 172 g
Load ratings and operation
- Dynamic load rating C
- 173000 N
- Static load rating C₀
- 288000 N
Full manufacturer specification28 parameters · expand
- Ball diameter
- 47.0 mm
- Bore diameter bearing, lower tolerance
- -0.012 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore diameter of housing washer
- 35.7 mm
- Connection diameter
- 47.5 mm
- Connection measure Inner ring
- 42.0 mm
- Edge Spacing
- 0.3 mm
- Fabric
- ELGOGLIDE
- Height
- 16.0 mm
- Height, lower tolerance
- -0.25 mm
- Height, upper tolerance
- 0.25 mm

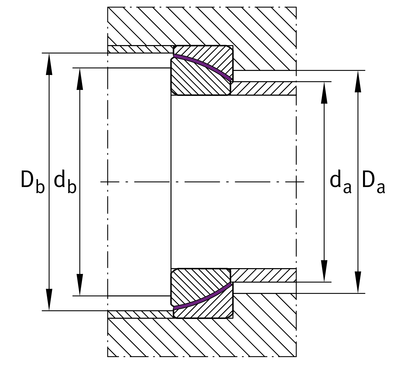

- Housing Connection Diameter
- 40.0 mm
- Maintenance
- Maintenance free
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -50.0 °C
- Outside diameter, lower tolerance
- -0.016 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- ja
- Plane Surface Spacing
- 1.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Tilt angle
- 2.4 °
- Width inner ring
- 15.0 mm
- Width inner ring, lower tolerance
- -0.24 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 15.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
