Description
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, open design
INA
GE12-UK
Spherical plain bearing
⌀12 × 22 mm
od EUR 12.85z VAT
netto EUR 10.45 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE12-UK—
EUR 12.85
Cheaper in larger quantities
| from 150 pcs | EUR 9.93 | −5% |
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE12-UK#N1
EAN4012802531275
Wymiary⌀12 × 22 mm
Masa15.66 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE12-UK#N1
- EAN
- 4012802531275

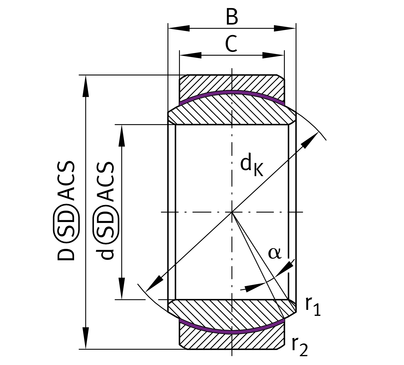

Dimensions
- Bore d
- 12 mm
- Outside diameter D
- 22 mm
- Mass
- 15.66 g
Load ratings and operation
- Dynamic load rating C
- 11300 N
- Static load rating C₀
- 28400 N
- Sealing
- Without
Full manufacturer specification29 parameters · expand
- Ball diameter
- 18.0 mm
- Bore diameter bearing, lower tolerance
- -0.008 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore lining
- Without
- Coating
- Without

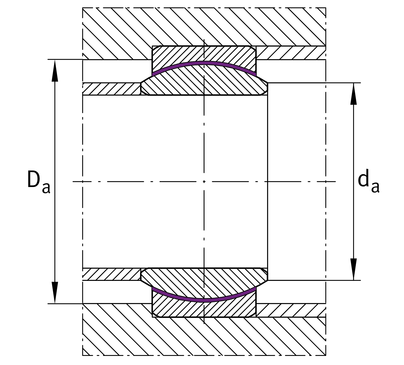

- Connection measurement, inner ring
- 14.9 mm
- Edge Spacing
- 0.3 mm
- Fabric
- PTFE-composite
- Housing Connection Diameter
- 17.5 mm
- Maintenance
- Maintenance free
- Material
- Steel
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -50.0 °C
- Outside diameter, lower tolerance
- -0.009 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- ja
- Radial Clearance
- 0 - 0,032
- Radial clearance, maximum
- 0.032 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Tilt angle
- 11.0 °
- Width inner ring
- 10.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 7.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
