Description
Standard performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open design
INA
GE12-DO-HLN

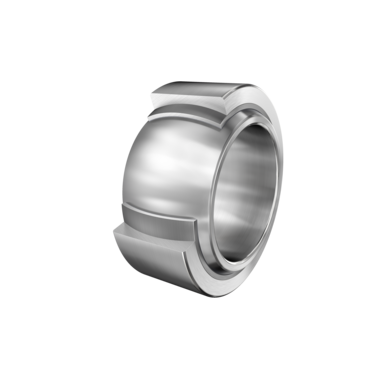

Spherical plain bearing
⌀12 × 22 mm
od EUR 8.89z VAT
netto EUR 7.23 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE12-DO-HLN—
EUR 8.89
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE12-DO-HLN#N1
EAN4047643000185
Wymiary⌀12 × 22 mm
Masa16 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE12-DO-HLN#N1
- EAN
- 4047643000185

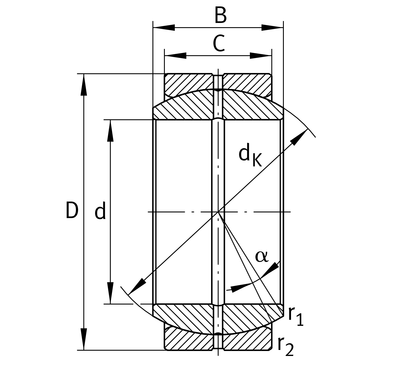

Dimensions
- Bore d
- 12 mm
- Outside diameter D
- 22 mm
- Mass
- 16 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 10700 N
- Static load rating C₀
- 53600 N
- Sealing
- Without
Full manufacturer specification28 parameters · expand
- Ball diameter
- 18.0 mm
- Bore diameter bearing, lower tolerance
- -0.008 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Coating
- Durotect M
- Connection measure Inner ring
- 14.9 mm
- Edge Spacing
- 0.3 mm
- Housing Connection Diameter
- 17.3 mm
- Maintenance
- Maintenance required
- Material
- Steel
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -60.0 °C
- Outside diameter, lower tolerance
- -0.009 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- nein
- Radial Clearance
- 0,032 - 0,068
- Radial clearance, maximum
- 0.068 mm
- Radial clearance, minimum
- 0.032 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Tilt angle
- 11.0 °
- Width inner ring
- 10.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 7.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
