Description
High performance radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, sealedHigh-performance: For highest load rating and lifetime demands
INA
GE110-DO-2RS-A
Spherical plain bearing
⌀110 × 160 mm
od EUR 321.40z VAT
netto EUR 261.30 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE110-DO-2RS-A—
EUR 321.40
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE110-DO-2RS-A#N1
EAN4012802529722
Wymiary⌀110 × 160 mm
Masa4.31 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE110-DO-2RS-A#N1
- EAN
- 4012802529722

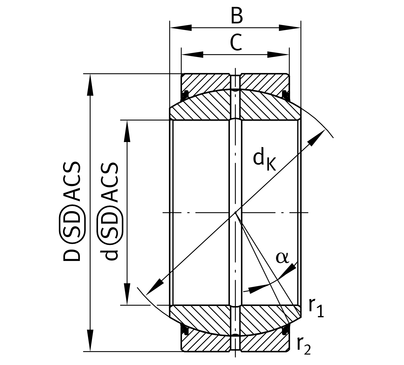

Dimensions
- Bore d
- 110 mm
- Outside diameter D
- 160 mm
- Mass
- 4.31 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 851000 N
- Static load rating C₀
- 3270000 N
- Sealing
- 2RS
Full manufacturer specification28 parameters · expand
- Ball diameter
- 140.0 mm
- Bore diameter bearing, lower tolerance
- -0.02 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Coating
- Durotect M
- Connection measure Inner ring
- 121.2 mm
- Edge Spacing
- 1.0 mm
- Housing Connection Diameter
- 134.0 mm
- Maintenance
- Maintenance required
- Material
- Steel
- Operating temperature max.
- 130.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter, lower tolerance
- -0.025 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- nein
- Radial Clearance
- 0,085 - 0,165
- Radial clearance, maximum
- 0.165 mm
- Radial clearance, minimum
- 0.085 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Tilt angle
- 6.0 °
- Width inner ring
- 70.0 mm
- Width inner ring, lower tolerance
- -0.2 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 55.0 mm
- Width outer ring, lower tolerance
- -0.5 mm
- Width outer ring, upper tolerance
- 0.0 mm
