Description

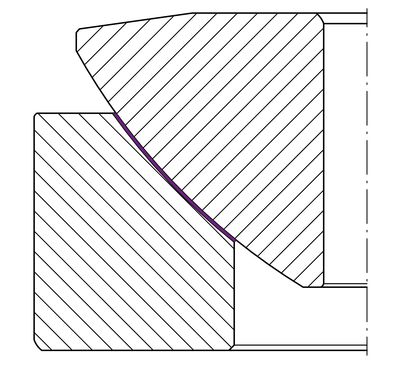

Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
INA
GE10-AW-A
Spherical plain bearing
⌀10 × 30 mm
od EUR 78.54z VAT
netto EUR 63.85 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GE10-AW-A—
EUR 78.54
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GE10-AW-A#N1
EAN4012802547375
Wymiary⌀10 × 30 mm
Masa38.082 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
41 parametersIdentification
- Manufacturer
- INA
- Type
- Spherical plain bearing
- Part number (SKU)
- GE10-AW-A#N1
- EAN
- 4012802547375
Dimensions
- Bore d
- 10 mm
- Outside diameter D
- 30 mm
- Mass
- 38.082 g
Load ratings and operation
- Dynamic load rating C
- 73200 N
- Static load rating C₀
- 122000 N
Full manufacturer specification32 parameters · expand
- Ball diameter
- 32.0 mm
- Basic dynamic load rating, axial
- 73200.0 N
- Basic static load rating, axial
- 122000.0 N
- Bore diameter bearing, lower tolerance
- -0.008 mm
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Bore diameter of housing washer
- 16.5 mm
- Coating
- Without
- Connection measure Inner ring
- 21.0 mm
- Edge Spacing
- 0.2 mm
- Fabric
- ELGOGLIDE
- Front surface diameter of shaft washer
- 21.0 mm
- Height
- 9.5 mm
- Height, lower tolerance
- -0.4 mm
- Height, upper tolerance
- 0.0 mm

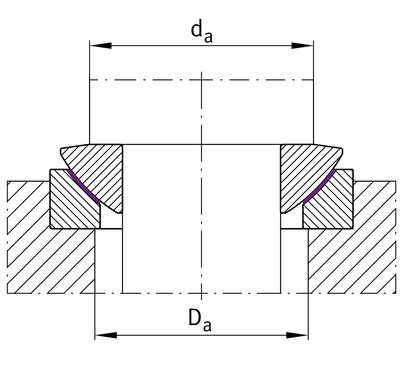

- Housing Connection Diameter
- 18.5 mm
- Maintenance
- Maintenance free
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -50.0 °C
- Outer eye diameter
- 27.5 mm
- Outside diameter, lower tolerance
- -0.009 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- ja
- Plane Surface Spacing
- 7.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Tilt angle
- 10.0 °
- Width inner ring
- 7.9 mm
- Width inner ring, lower tolerance
- -0.24 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width Outer ring
- 6.0 mm
- Width outer ring, lower tolerance
- -0.24 mm
- Width outer ring, upper tolerance
- 0.0 mm
