Description
Rod end with external thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type M, sealed design
INA
GAR60-DO-2RS-C
Rod end
⌀60 × 90 mm
od EUR 465.47z VAT
netto EUR 378.43 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GAR60-DO-2RS-C—
EUR 465.47
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GAR60-DO-2RS-C#N1
EAN4064328476769
Wymiary⌀60 × 90 mm
Masa5.94 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GAR60-DO-2RS-C#N1
- EAN
- 4064328476769

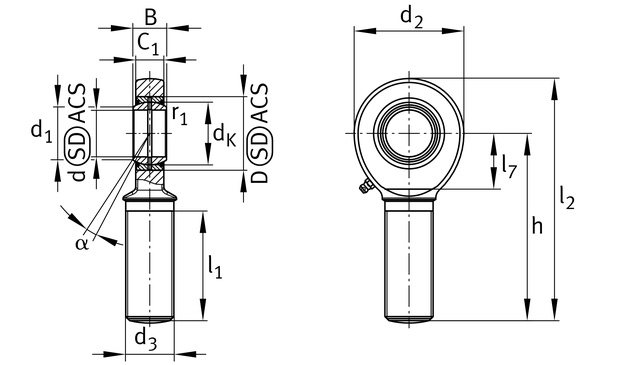

Dimensions
- Bore d
- 60 mm
- Outside diameter D
- 90 mm
- Mass
- 5.94 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 318000 N
- Static load rating C₀
- 405000 N
- Sealing
- 2RS
Full manufacturer specification33 parameters · expand
- Ball diameter
- 80.0 mm
- Bore diameter bearing, lower tolerance
- -0.015 mm
- Bore diameter bearing, tolerance
- 0,015
- Bore diameter bearing, upper tolerance
- 0.0 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 75.0 mm
- Edge Spacing
- 1.0 mm
- Lubrication nipple
- DIN71412-AM6 (tapered grease nipple)
- Maintenance
- Maintenance required
- Mounting
- External thread
- Operating temperature max.
- 130.0 °C
- Operating temperature min.
- -30.0 °C
- Outer eye diameter
- 135.0 mm
- Outer flange diameter inner ring
- 66.8 mm
- PFAS
- nein
- Radial Clearance
- 0.043-0.12 mm
- Radial clearance, maximum
- 0.12 mm
- Radial clearance, minimum
- 0.043 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Shank Length External thread head
- 115.0 mm
- Shank Length External thread rod
- 210.0 mm
- Slotted
- No
- Thread Pitch
- Right-hand thread
- Thread size
- M52x3
- Tilt angle
- 6.0 °
- Total length external thread head
- 277.5 mm
- Width inner ring
- 44.0 mm
- Width inner ring, lower tolerance
- -0.15 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 38.0 mm
