Description

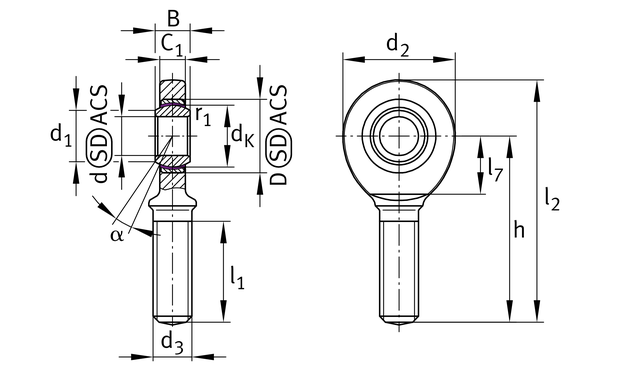

Rod end with external thread, left hand thread, maintenance-free, sliding layer: PTFE composite, DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, open design
INA
GAL10-UK

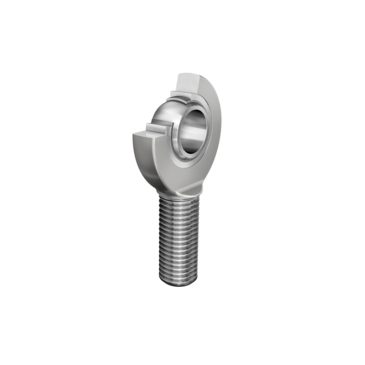

Rod end
⌀10 × 19 mm
od EUR 28.77z VAT
netto EUR 23.39 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GAL10-UK—
EUR 28.77
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GAL10-UK#N1
EAN4012802524604
Wymiary⌀10 × 19 mm
Masa56 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
41 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GAL10-UK#N1
- EAN
- 4012802524604
Dimensions
- Bore d
- 10 mm
- Outside diameter D
- 19 mm
- Mass
- 56 g
Load ratings and operation
- Sealing
- Without
Full manufacturer specification33 parameters · expand
- Ball diameter
- 16.0 mm
- Basic dynamic load rating
- 8640.0 N
- Basic static load rating
- 20600.0 N
- Bore diameter bearing upper tolerance
- 0.0 mm
- Bore diameter, lower tolerance
- -0.008 mm
- Clampable
- Not clampable
- Length of the flat surface from the bearing bore centre to the shank
- 15.0 mm
- Length of thread
- 48.0 mm
- Lubrication nipple
- Cannot be relubricated
- Maintenance
- Maintenance free
- Mounting
- External thread
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -50.0 °C
- Outer diameter eye
- 29.0 mm
- Outer flange diameter inner ring
- 13.2 mm
- PFAS
- ja
- Radial clearance
- 0 - 0,032
- Radial clearance, maximum
- 0.032 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Slotted
- No
- Smallest single chamfer dimension, inner ring
- 0.3 mm
- Thread length
- 26.0 mm
- Thread Pitch
- Left-hand thread
- Thread size
- M10
- Tilt angle
- 12.0 °
- Total length
- 62.5 mm
- Width inner ring
- 9.0 mm
- Width inner ring , lower tolerance
- -0.12 mm
- Width inner ring; upper tolerance
- 0.0 mm
- Width of the rod end
- 7.0 mm
