Description
Corrosion-resistant rod end, with external thread, right hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
INA
GAKSR10-PS
Rod end
⌀10 × 22 mm
od EUR 80.04z VAT
netto EUR 65.07 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GAKSR10-PS—
EUR 80.04
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GAKSR10-PS#N1
EAN4012802545449
Wymiary⌀10 × 22 mm
Masa64.7 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
43 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GAKSR10-PS#N1
- EAN
- 4012802545449

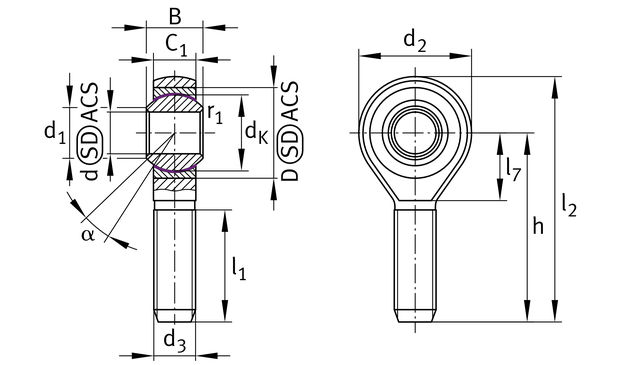

Dimensions
- Bore d
- 10 mm
- Outside diameter D
- 22 mm
- Mass
- 64.7 g
Load ratings and operation
- Sealing
- Without
Full manufacturer specification35 parameters · expand
- Ball diameter
- 19.0 mm
- Basic dynamic load rating
- 18000.0 N
- Basic static load rating
- 7300.0 N
- Bore diameter bearing upper tolerance
- 0.015 mm
- Bore diameter_bearing_tolerance
- H7
- Bore diameter, lower tolerance
- 0.0 mm
- Clampable
- Not clampable
- Fabric
- Sliding foil
- Length of the flat surface from the bearing bore centre to the shank
- 14.0 mm
- Length of thread
- 48.0 mm
- Lubrication nipple
- Cannot be relubricated
- Maintenance
- Maintenance free
- Mounting
- External thread
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -10.0 °C
- Outer diameter eye
- 29.0 mm
- Outer flange diameter inner ring
- 12.9 mm
- PFAS
- nein
- Radial clearance
- 0,005 - 0,040
- Radial clearance, maximum
- 0.04 mm
- Radial clearance, minimum
- 0.005 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Slotted
- No
- Smallest single chamfer dimension, inner ring
- 0.3 mm
- Thread length
- 28.0 mm
- Thread Pitch
- Right-hand thread
- Thread size
- M10
- Tilt angle
- 13.0 °
- Total length
- 62.5 mm
- Width inner ring
- 14.0 mm
- Width inner ring , lower tolerance
- -0.12 mm
- Width inner ring; upper tolerance
- 0.0 mm
- Width of the rod end
- 10.5 mm
