Description

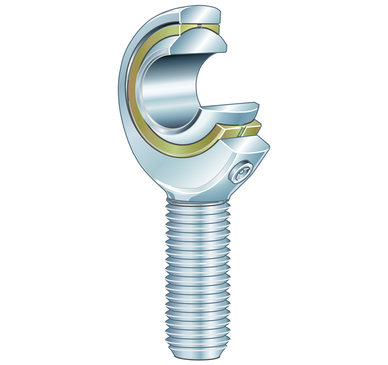

Rod end with external thread, right hand thread, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-4, dimension series K, type M, open design
INA
GAKRB18-PC
Rod end
⌀18 × 35 mm
od EUR 76.89z VAT
netto EUR 62.51 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GAKRB18-PC—
EUR 76.89
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GAKRB18-PC#N1
EAN4054364680008
Wymiary⌀18 × 35 mm
Masa281 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GAKRB18-PC#N1
- EAN
- 4054364680008

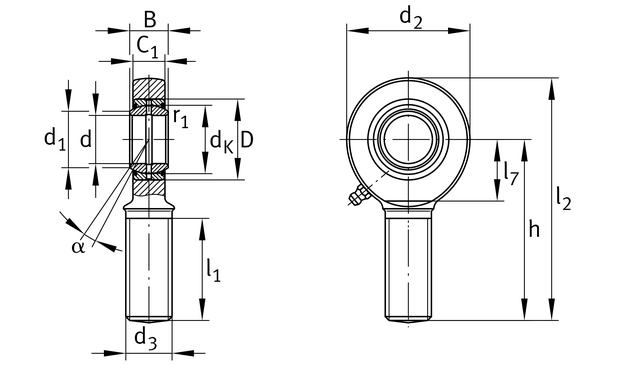

Dimensions
- Bore d
- 18 mm
- Outside diameter D
- 35 mm
- Mass
- 281 g
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 24400 N
- Static load rating C₀
- 36900 N
- Sealing
- Without
Full manufacturer specification33 parameters · expand
- Ball diameter
- 31.75 mm
- Bore diameter bearing, lower tolerance
- 0.0 mm
- Bore diameter bearing, tolerance
- H7
- Bore diameter bearing, upper tolerance
- 0.018 mm
- Clampable
- Not clampable
- Distance drilling with/shaft start
- 25.0 mm
- Edge Spacing
- 0.3 mm
- Lubrication nipple
- DIN3405 (funnel-type grease nipple)
- Maintenance
- Maintenance required
- Mounting
- External thread
- Operating temperature max.
- 250.0 °C
- Operating temperature min.
- -60.0 °C
- Outer eye diameter
- 47.0 mm
- Outer flange diameter inner ring
- 21.9 mm
- PFAS
- nein
- Radial Clearance
- 0,003 - 0,049
- Radial clearance, maximum
- 0.049 mm
- Radial clearance, minimum
- 0.003 mm
- Radial internal clearance
- CN (Group N)
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing
- Without
- Shank Length External thread head
- 41.0 mm
- Shank Length External thread rod
- 72.0 mm
- Slotted
- No
- Thread Pitch
- Right-hand thread
- Thread size
- M18X1,5-LH
- Tilt angle
- 15.0 °
- Total length external thread head
- 95.5 mm
- Width inner ring
- 23.0 mm
- Width inner ring, lower tolerance
- -0.12 mm
- Width inner ring, upper tolerance
- 0.0 mm
- Width of the rod end
- 16.5 mm
