Description
Rod end GAKL..-PW, external threads, maintenance-free
INA
GAKL16-PW
Rod end
⌀16 × 32 mm
od EUR 47.12z VAT
netto EUR 38.31 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
GAKL16-PW—
EUR 47.12
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)GAKL16-PW#N1
EAN4012802521955
Wymiary⌀16 × 32 mm
Masa227 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
43 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end
- Part number (SKU)
- GAKL16-PW#N1
- EAN
- 4012802521955

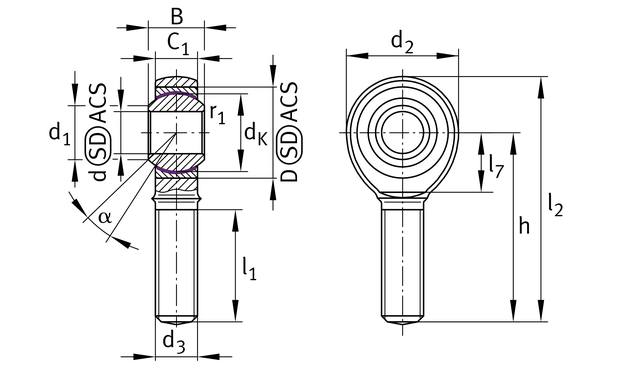

Dimensions
- Bore d
- 16 mm
- Outside diameter D
- 32 mm
- Mass
- 227 g
Load ratings and operation
- Sealing
- Without
Full manufacturer specification35 parameters · expand
- Ball diameter
- 28.575 mm
- Basic dynamic load rating
- 38600.0 N
- Basic static load rating
- 45300.0 N
- Bore diameter bearing upper tolerance
- 0.018 mm
- Bore diameter_bearing_tolerance
- H7
- Bore diameter, lower tolerance
- 0.0 mm
- Clampable
- Not clampable
- Fabric
- Sliding foil
- Length of the flat surface from the bearing bore centre to the shank
- 23.0 mm
- Length of thread
- 66.0 mm
- Lubrication nipple
- Cannot be relubricated
- Maintenance
- Maintenance free
- Mounting
- External thread
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -50.0 °C
- Outer diameter eye
- 42.0 mm
- Outer flange diameter inner ring
- 19.3 mm
- PFAS
- ja
- Radial clearance
- 0 - 0,035
- Radial clearance, maximum
- 0.035 mm
- Radial clearance, minimum
- 0.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing
- Without
- Slotted
- No
- Smallest single chamfer dimension, inner ring
- 0.3 mm
- Thread length
- 37.0 mm
- Thread Pitch
- Left-hand thread
- Thread size
- M16
- Tilt angle
- 15.0 °
- Total length
- 87.0 mm
- Width inner ring
- 21.0 mm
- Width inner ring , lower tolerance
- -0.12 mm
- Width inner ring; upper tolerance
- 0.0 mm
- Width of the rod end
- 15.0 mm
