Description
Plummer block housing unit G2..-NPP-B, RIBB sheet metal PB
INA
G206-NPP-B

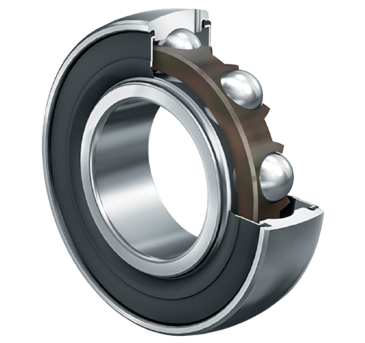

Self-aligning deep groove ball bearings
⌀30 × 62 × 16 mm
od EUR 31.92z VAT
netto EUR 25.95 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
G206-NPP-B—
EUR 31.92
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)G206-NPP-B#N1
EAN4012802825282
Wymiary⌀30 × 62 × 16 mm
Masa180 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Self-aligning deep groove ball bearings
- Part number (SKU)
- G206-NPP-B#N1
- EAN
- 4012802825282

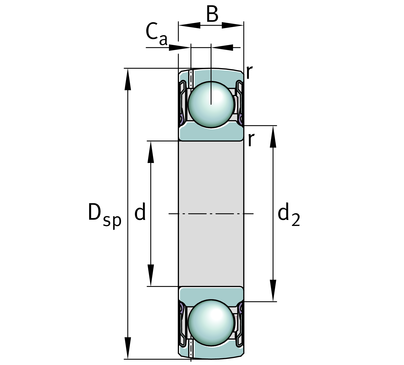

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Width B
- 16 mm
- Mass
- 180 g
Load ratings and operation
- Dynamic load rating C
- 20700 N
- Static load rating C₀
- 11300 N
- Sealing
- NPP
Full manufacturer specification10 parameters · expand
- Distance to lubrication hole
- 4.6 mm
- Minimum chamfer dimension
- 1.0 mm
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Rib diameter sealing inner ring
- 37.3 mm
- RoHS
- RoHS compliant
- Sealing
- NPP
- Shape of outer surface
- B
