Description
Radial insert ball bearing G1..-KRR-B-AS2/V
INA
G1100-XL-KRR-B-AS2/V
Radial insert ball bearing
⌀25.4 × 52 × 34.9 mm
od EUR 27.01z VAT
netto EUR 21.96 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
G1100-XL-KRR-B-AS2/V—
EUR 27.01
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)G1100-XL-KRR-B-AS2/V#N40>1
EAN4064327238214
Wymiary⌀25.4 × 52 × 34.9 mm
Opakowanie40 szt.
Minimum order40 szt.
Masa229 g
Ten towar sprzedawany jest w opakowaniach po 40 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- G1100-XL-KRR-B-AS2/V#N40>1
- EAN
- 4064327238214

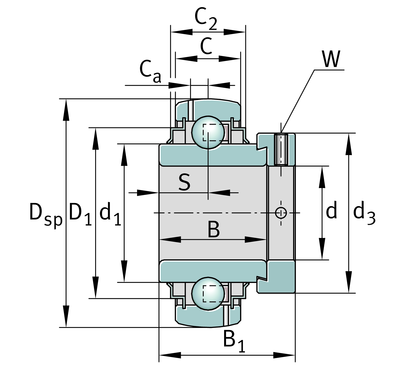

Dimensions
- Bore d
- 25.4 mm
- Outside diameter D
- 52 mm
- Width B
- 34.9 mm
- Mass
- 229 g
Load ratings and operation
- Dynamic load rating C
- 14900 N
- Static load rating C₀
- 7800 N
- Sealing
- KRR
Full manufacturer specification17 parameters · expand
- Bore diameter, inch
- 1.0 inch
- Calculation factor
- 13.8
- Distance raceway
- 17.5 mm
- Distance to lubrication hole
- 3.9 mm
- Fatigue load limit, radial
- 410.0 N
- Locking collar total width
- 44.5 mm
- Lubrication hole transposed
- AS2/V
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outside diameter locking collar/locknut
- 37.5 mm
- Outside diameter seal
- 42.5 mm
- PFAS
- nein
- Rib diameter inner ring
- 33.8 mm
- Sealing
- KRR
- Sealing total width
- 16.5 mm
- Shape of outer surface
- B
- Width, outer ring
- 15.0 mm
