Description
shaft support blocks with flange
INA
FW16-B
Shaft block
od EUR 57.40z VAT
netto EUR 46.67 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
FW16-B—
EUR 57.40
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)FW16-B#U
EAN4054364886769
Masa80 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- INA
- Type
- Shaft block
- Part number (SKU)
- FW16-B#U
- EAN
- 4054364886769

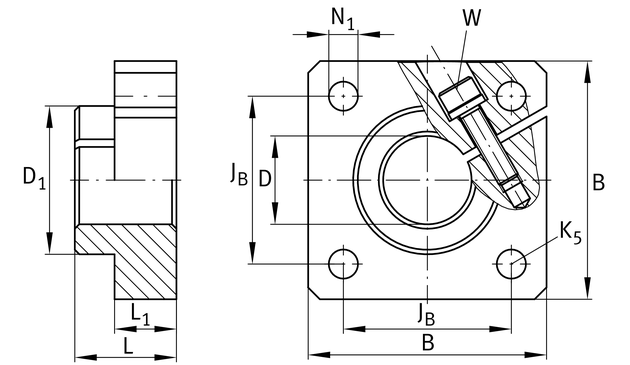

Dimensions
- Width B
- 50 mm
- Mass
- 80 g
Full manufacturer specification11 parameters · expand
- Diameter
- 16.0 mm
- Length
- 20.0 mm
- Mounting Dimension
- 35.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Size code
- 16
- Size thread fixing screws
- M5
- Suffix
- B
- Tolerance
- H13
- Width across flats
- 3.0 mm
