Description
Flanged housing, sheet metal
INA
FLAN65-RCSMF-FA125
Flanged housing
od EUR 5.98z VAT
netto EUR 4.86 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
FLAN65-RCSMF-FA125—
EUR 5.98
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)FLAN65-RCSMF-FA125#N1
EAN4012802779431
Masa94 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
15 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing
- Part number (SKU)
- FLAN65-RCSMF-FA125#N1
- EAN
- 4012802779431
Dimensions
- Mass
- 94 g
Full manufacturer specification10 parameters · expand

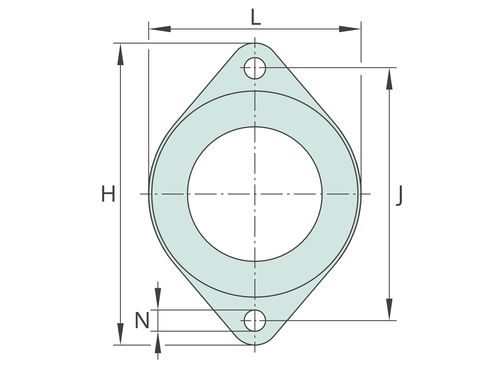

- Distance fixing bore
- 92.0 mm
- Fixing bore
- 10.5 mm
- Flange width
- 70.0 mm
- Height flange
- 114.0 mm

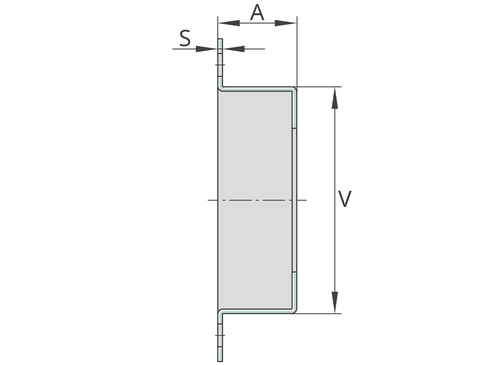

- Height housing
- 27.0 mm
- Inner diameter sheet metal collar
- 47.0 mm
- Number of screwing holes
- 2.0
- Outer diameter rubber interliner
- 65.0 mm
- Shoulder diameter housing
- 68.0 mm
- Thickness of flange
- 1.5 mm
