Description
Flanged housing, sheet metal
INA
FLAN40-MSB-FA125
Flanged housing
od EUR 2.07z VAT
netto EUR 1.68 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
FLAN40-MSB-FA125—
EUR 2.07
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)FLAN40-MSB-FA125#N1
EAN4012802797299
Masa66 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
16 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing
- Part number (SKU)
- FLAN40-MSB-FA125#N1
- EAN
- 4012802797299
Dimensions
- Outside diameter D
- 40 mm
- Mass
- 66 g
Full manufacturer specification10 parameters · expand

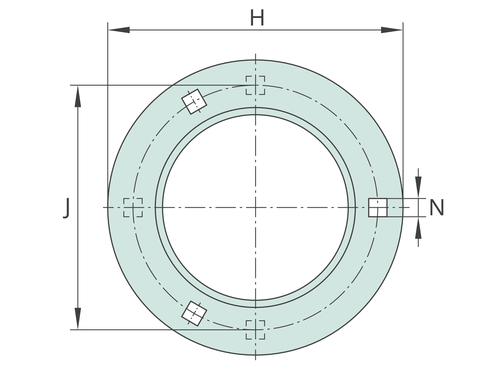

- Distance fixing bore
- 63.5 mm
- Fixing square
- 7.0 mm
- Flange width
- 81.0 mm
- Height housing
- 7.0 mm
- Number of screwing holes
- 3.0
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shoulder diameter housing
- 48.0 mm
- Thickness of flange
- 2.0 mm
