Description

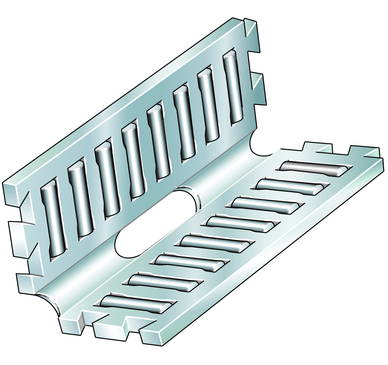

angled needle roller flat cage
INA
FFW3045
Flat cage
od EUR 13.06z VAT
netto EUR 10.62 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
FFW3045—
EUR 13.06
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)FFW3045#N
EAN4054364119737
Masa18.9 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
16 parametersIdentification
- Manufacturer
- INA
- Type
- Flat cage
- Part number (SKU)
- FFW3045#N
- EAN
- 4054364119737
Dimensions
- Mass
- 18.9 g
Full manufacturer specification11 parameters · expand
- Associated rail
- M7040, V7040, ML8040, ML9040
- Basic static load capacity
- 188400.0 N
- Length
- 60.0 mm
- Length rolling element
- 13.8 mm
- Load capacity dyn.
- 57900.0 N
- Number of rolling elements per row
- 9.0
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Rolling element diameter
- 3.0 mm
- Size code
- 3045
