Description
flat cage, single row
INA
FF2515/0-2

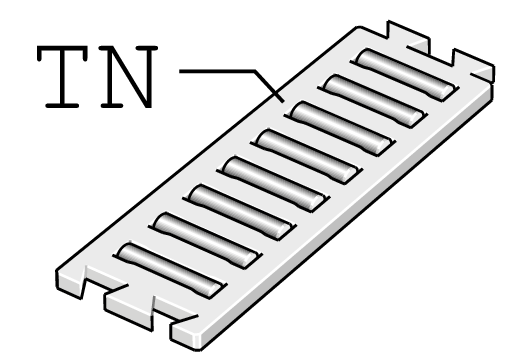

Flat cage
od EUR 1.48z VAT
netto EUR 1.20 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
FF2515/0-2—
EUR 1.48
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)FF2515/0-2#U
EAN4012802036282
Masa3.8 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- INA
- Type
- Flat cage
- Part number (SKU)
- FF2515/0-2#U
- EAN
- 4012802036282
Dimensions
- Mass
- 3.8 g

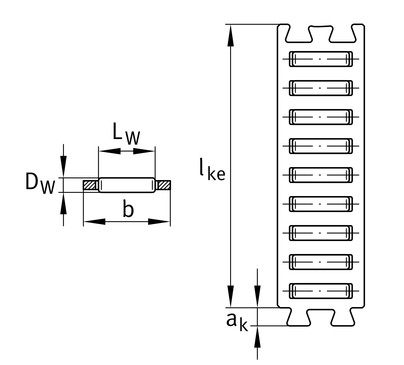

Full manufacturer specification14 parameters · expand
- Associated rail
- J4025, S4025, J5025, S5025
- Length
- 45.0 mm
- Length rolling element
- 9.8 mm
- Load capacity dyn.
- 32700.0 N
- Load capacity stat.
- 92300.0 N
- Min.
- 10.0 mm
- Number of rolling elements per row
- 8.0
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Rolling element diameter
- 2.5 mm
- Rolling element sort
- 0-2
- Size code
- 2515
- Tolerance
- 0.2 mm
