Description

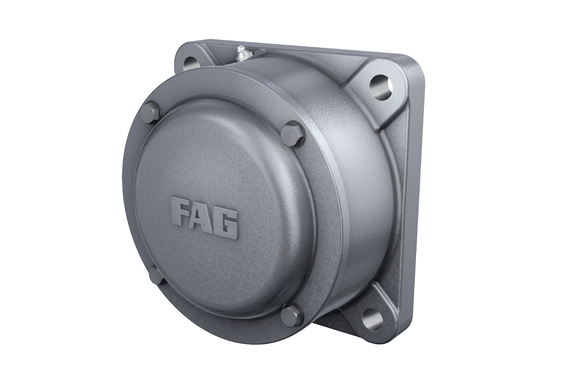

Flanged housing for various bearing types, with conical bore and clamping sleeve, closed on one side
FAG
F515-A-L
Flanged housing
od EUR 277.66z VAT
netto EUR 225.74 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
F515-A-L—
EUR 277.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)F515-A-L#N1
EAN4012801213165
Masa9.50 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- FAG
- Type
- Flanged housing
- Part number (SKU)
- F515-A-L#N1
- EAN
- 4012801213165

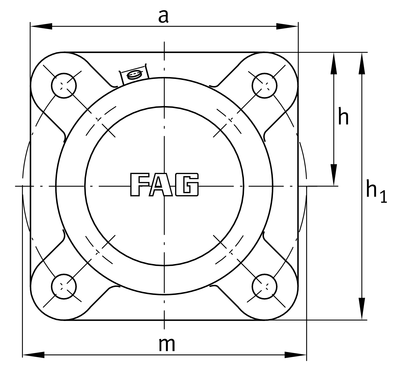

Dimensions
- Outside diameter D
- 130 mm
- Mass
- 9.50 kg
Full manufacturer specification13 parameters · expand
- Connection thread for lubrication
- M10x1
- Distance flange to bearing seat
- 30.0 mm
- Distance shaft axis
- 95.0 mm
- Flange width
- 190.0 mm
- Height flange
- 190.0 mm
- Number of fastening holes
- 4.0
- PFAS
- nein
- Pich circle diameter fixing holes
- 215.0 mm
- REACH
- REACH_SVHC!
- RoHS
- RoHS compliant with declarable substances
- Shaft diameter
- 65.0 mm
- Size of fixing screws
- M16
- Thickness of flange
- 25.0 mm
