Description
Flanged housing for various bearing types, with conical bore and clamping sleeve, continuous shaft
FAG
F508-B-L
Flanged housing
od EUR 91.28z VAT
netto EUR 74.21 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
F508-B-L—
EUR 91.28
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)F508-B-L#N1
EAN4012801480321
Masa2.70 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
20 parametersIdentification
- Manufacturer
- FAG
- Type
- Flanged housing
- Part number (SKU)
- F508-B-L#N1
- EAN
- 4012801480321

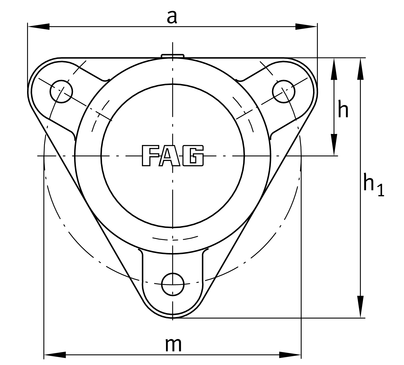

Dimensions
- Outside diameter D
- 80 mm
- Mass
- 2.70 kg
Full manufacturer specification14 parameters · expand
- Connection thread for lubrication
- M10x1
- Distance flange to bearing seat
- 22.0 mm
- Distance shaft axis
- 54.0 mm
- Flange width
- 160.0 mm
- Height flange
- 143.0 mm
- Number of fastening holes
- 3.0
- PFAS
- nein
- Pich circle diameter fixing holes
- 140.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Shaft diameter
- 35.0 mm
- Size of fixing screws
- M12
- Thickness of flange
- 12.0 mm
- Total width with lid g2
- 66.0 mm
