Description

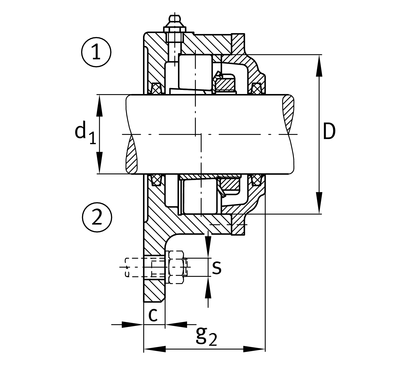

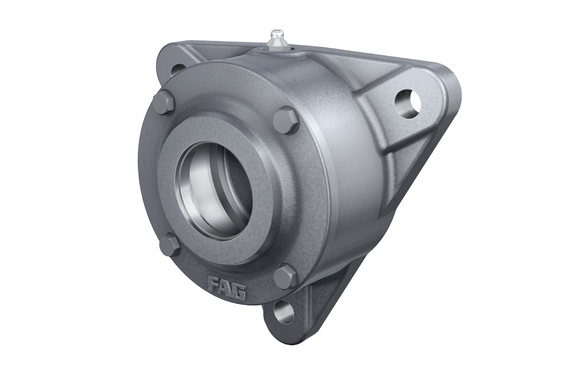

Flanged housing for various bearing types, with conical bore and clamping sleeve, continuous shaft
FAG
F507-B-L
Flanged housing
od EUR 78.46z VAT
netto EUR 63.79 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
F507-B-L—
EUR 78.46
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)F507-B-L#N1
EAN4012801480291
Masa2.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
20 parametersIdentification
- Manufacturer
- FAG
- Type
- Flanged housing
- Part number (SKU)
- F507-B-L#N1
- EAN
- 4012801480291
Dimensions
- Outside diameter D
- 72 mm
- Mass
- 2.00 kg
Full manufacturer specification14 parameters · expand
- Connection thread for lubrication
- M10x1
- Distance flange to bearing seat
- 17.0 mm
- Distance shaft axis
- 48.5 mm
- Flange width
- 145.0 mm
- Height flange
- 130.0 mm
- Number of fastening holes
- 3.0
- PFAS
- nein
- Pich circle diameter fixing holes
- 130.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Shaft diameter
- 30.0 mm
- Size of fixing screws
- M12
- Thickness of flange
- 12.0 mm
- Total width with lid g2
- 60.0 mm
