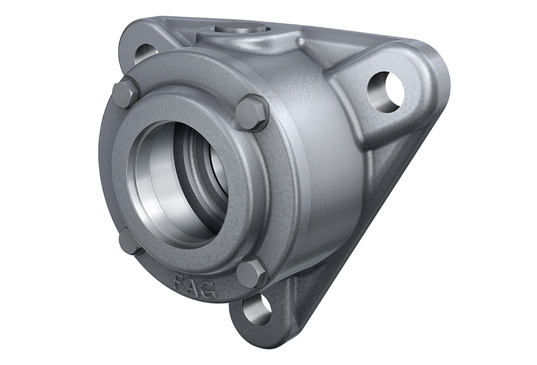

Product photo

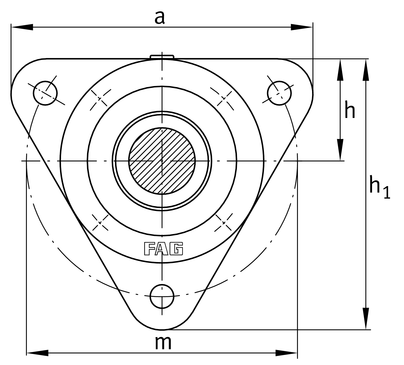

Technical drawing

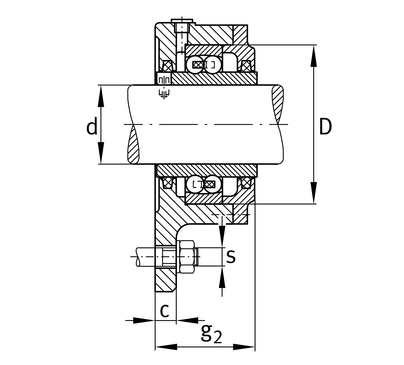

Rysunek techniczny 2

Description

Flanged housing for self-aligning ball bearing 112 with wide inner-ring, felt seal, grease lubrication

FAG

F11206

Flanged housing

⌀30 × 62 mm

od EUR 92.11z VAT

netto EUR 74.89 · cena detaliczna

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

F11206—
EUR 92.11
To orderapprox. 10 days

Brought in to order — approx. 10 working days

Symbol (SKU)F11206#N1
EAN4012801212915
Wymiary⌀30 × 62 mm
Masa1.35 kg

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

37 parameters
Datasheet (PDF)Full manufacturer specification — drawing, dimensions, tolerances.

Identification

Manufacturer
FAG
Type
Flanged housing
Part number (SKU)
F11206#N1
EAN
4012801212915

Dimensions

Bore d
30 mm
Outside diameter D
62 mm
Mass
1.35 kg
Full manufacturer specification30 parameters · expand
Bearing sort
SABB
Bearing split
No
Connection thread for lubrication
M10x1
Distance between mounting bolt centerlines (length)
116.0 mm
Distance shaft axis
44.0 mm
Flange width
130.0 mm
Height bearing seat
44.0 mm
Height flange
117.0 mm
Housing height
117.0 mm
Housing length
130.0 mm
Housing material
GG
Housing opening
durchgehend
Housing qty bolts
3
Housing shape
Dreieck
Housing sort
Flanged
Housing split
Nein
Housing width
49.0 mm
Inner diameter bearing
30.0 mm
Location on shaft
Fix
Operating temperature max.
100.0 °C
Operating temperature min.
-20.0 °C
Outer diameter bearing
62.0 mm
PFAS
nein
Pitch circle diameter fixing holes
116.0 mm
REACH
REACH conform
RoHS
RoHS compliant
Shaft diameter
30.0 mm
Size of fixing screws
M10
Thickness of flange
12.0 mm
Total width with cover
49.0 mm
