Description

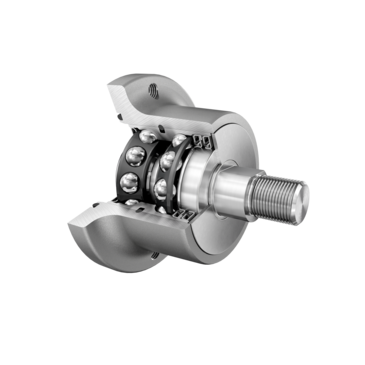

Schaeffler Field Pro Disk Harrow Units
INA
F-673270.04.TILL
Bearing
od EUR 84.75z VAT
netto EUR 68.90 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
F-673270.04.TILL—
EUR 84.75
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)F-673270.04.TILL#N40
EAN4064327141200
Opakowanie40 szt.
Minimum order40 szt.
Masa2.61 kg
Ten towar sprzedawany jest w opakowaniach po 40 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Bearing
- Part number (SKU)
- F-673270.04.TILL#N40
- EAN
- 4064327141200
Dimensions
- Outside diameter D
- 70 mm
- Mass
- 2.61 kg
Load ratings and operation
- Dynamic load rating C
- 50000 N
- Static load rating C₀
- 40000 N
Full manufacturer specification18 parameters · expand
- Bolt diameter
- 32.0 mm
- Connection thread
- M22x1,5
- Diameter adapter
- 28.0 mm
- Diameter flange
- 117.0 mm
- Fixing bore metric
- M12x1,25
- Height housing
- 61.5 mm
- Length locking device
- 25.5 mm
- Length thread
- 28.5 mm
- Number of screwing holes
- 4.0
- Outer diameter bearing
- 70.0 mm
- Outer diameter housing
- 81.6 mm
- PFAS
- nein
- Pitch circle diameter (holes)
- 98.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Thickness of flange
- 12.0 mm
- Total height unit
- 102.0 mm
- Width of adapter
- 12.0 mm
