Description

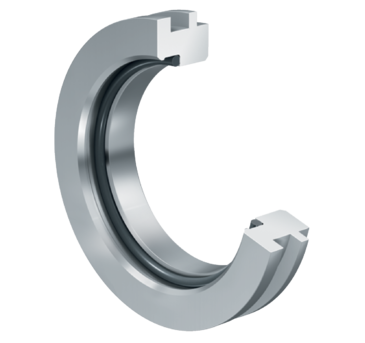

Labyrinth seal; ETS; SES-housing
FAG
ETS215-315
Sealing ring
od EUR 37.18z VAT
netto EUR 30.23 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ETS215-315—
EUR 37.18
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ETS215-315#N1
EAN4064327019943
Masa409.12 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
13 parametersIdentification
- Manufacturer
- FAG
- Type
- Sealing ring
- Part number (SKU)
- ETS215-315#N1
- EAN
- 4064327019943
Dimensions
- Width B
- 21 mm
- Mass
- 409.12 g
Full manufacturer specification7 parameters · expand
- Diameter sealing
- 102.5 mm
- Outside diamater
- 108.7 mm
- Overhang housing
- 7.0 mm
- PFAS
- ja
- Sealing shaft diameter
- 85.0 mm
- Shaft diameter
- 75.0 mm
- Total width
- 21.0 mm
