Description

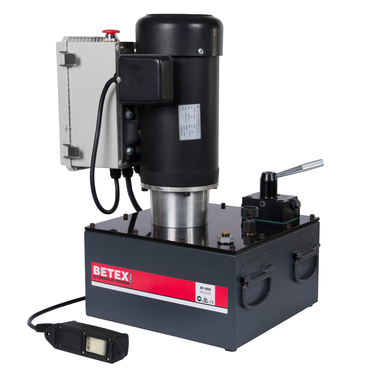

BETEX EP-420, 700 bar, usable oil volume 18 l
Betex
EP-420S-400V
Hydraulic pump, electric
od EUR 10,219.48z VAT
netto EUR 8,308.52 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
EP-420S-400V—
EUR 10,219.48
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)EP-420S-400V#N1
EAN4064328686298
Masa57.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
22 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic pump, electric
- Part number (SKU)
- EP-420S-400V#N1
- EAN
- 4064328686298
Dimensions
- Mass
- 57.60 kg
Full manufacturer specification17 parameters · expand
- Amperage
- 6.0 A
- Cylinder compatibility
- single-acting
- Flow rate/minute @ 350 bar
- 1950.0 cm³
- Flow rate/minute @ 700 bar
- 1800.0 cm³
- Flow rate/minute, without load
- 9500.0 cm³
- Maximum operating pressure
- 700.0 bar
- Motor power
- 2.24 kW
- Motor type
- three-phase
- Noise level @ 700 bar
- 80.0 dB
- Operating voltage
- 400.0 V
- Power frequency
- 50 – 60 Hz
- Product specifics
- Motor thermally protected, remote control with 3 m cable, automatic overload valve (700 bar)
- Series
- EP
- Useable oil quantity
- 18.0 l
- Valve type
- 2 pos./2-way
- Version
- HC
- Volume of oil container
- 20.0 l
