Description

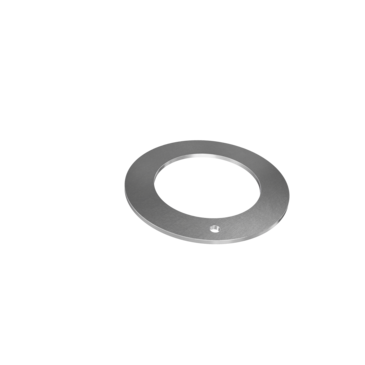

Thrust washer, maintenance-free, material in accordance with ISO 3547-4, with steel backing
INA
EGW26-E40
Thrust washer
od EUR 1.97z VAT
netto EUR 1.60 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
EGW26-E40—
EUR 1.97
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)EGW26-E40#N25
EAN4064328018303
Opakowanie25 szt.
Minimum order25 szt.
Masa11.57 g
Ten towar sprzedawany jest w opakowaniach po 25 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
38 parametersIdentification
- Manufacturer
- INA
- Type
- Thrust washer
- Part number (SKU)
- EGW26-E40#N25
- EAN
- 4064328018303

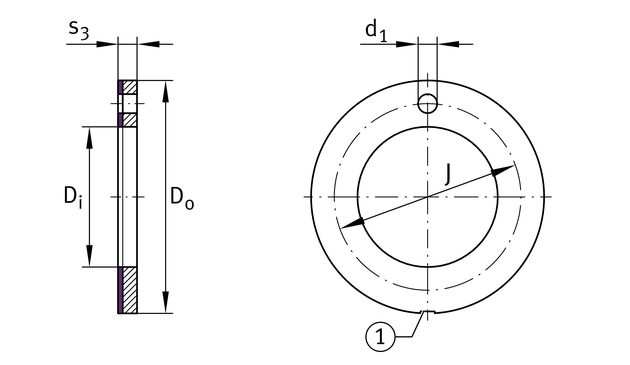

Dimensions
- Bore d
- 26 mm
- Mass
- 11.57 g
Load ratings and operation
- Dynamic load rating C
- 139000 N
- Static load rating C₀
- 247000 N
Full manufacturer specification30 parameters · expand
- Basic dynamic load rating, axial
- 139000.0 N
- Basic static load rating, axial
- 247000.0 N
- Fixing hole diameter
- 3.0 mm
- Fixing hole diameter, lower tolerance
- 0.1 mm
- Fixing hole diameter, upper tolerance
- 0.4 mm
- Inner diameter, lower tolerance
- 0.0 mm
- Inner diameter, upper tolerance
- 0.25 mm
- Maintenance
- Maintenance free
- Material back
- Steel
- Material sliding Layer
- E40

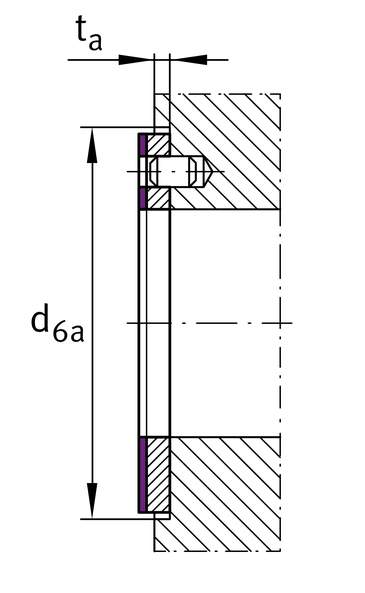

- Mounting dimension
- 1.0 mm
- Mounting dimension d_6a
- 44.0 mm
- Mounting dimension d_6a, lower tolerance
- 0.0 mm
- Mounting dimension d_6a, upper tolerance
- 0.12 mm
- Mounting dimension, lower tolerance
- -0.2 mm
- Mounting dimension, upper tolerance
- 0.2 mm
- Operating temperature max.
- 280.0 °C
- Operating temperature min.
- -200.0 °C
- Outer Diameter
- 44.0 mm
- Outside diameter, lower tolerance
- -0.25 mm
- Outside diameter, upper tolerance
- 0.0 mm
- PFAS
- nein
- Pitch circle
- 35.0 mm
- Pitch circle, lower tolerance
- -0.12 mm
- Pitch circle, upper tolerance
- 0.12 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Wall thickness
- 1.5 mm
- Wall thickness, lower tolerance
- -0.05 mm
- Wall thickness, upper tolerance
- 0.0 mm
